What we know about the measurement:

Yamaha NS-800A is a passive bookshelves that cost around 4800 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 85.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 64.5Hz (resp. 43.9Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.46 and would be 6.23 with a perfect subwoofer.
      • Details: NBD: ON 0.454, LW 0.382, SP 0.389, PIR 0.349; SM: SP0.671, PIR0.312; LFQ 0.726, LFX 37Hz
    • Tonality (Preference) Score is 6.56 with an EQ and would be 8.14 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.371, LW 0.282, SP 0.315, PIR 0.248; SM: SP0.965, PIR0.917; LFQ 0.836, LFX 33Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 86.5 dB
    • Impedance 3.8 Ohm
    • Size
      • Width 231mm
      • Height 420mm
      • Depth 358mm
    • Weight 13.0kg

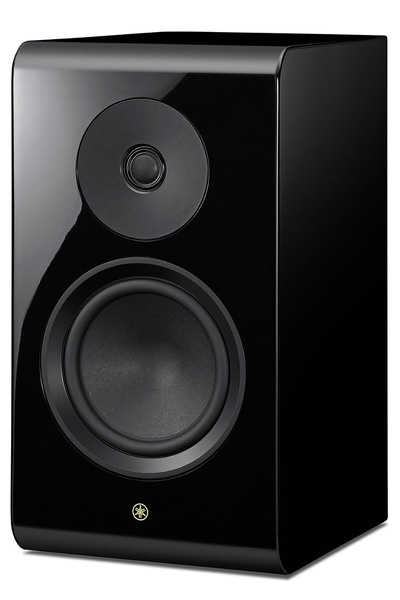

Yamaha NS-800A
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
PK 31.0 1.47 2.73
PK 67.0 1.7 2.63
PK 144.0 2.44 -1.02
PK 190.0 1.38 -0.9
PK 560.0 2.86 2.47
PK 643.0 2.92 -3.39
PK 16239.0 0.5 -8.29
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Yamaha NS-800A filters_auto_eq

AutomaticEQ

Yamaha NS-800A filters_eq_full

Target v.s. EQ
