What we know about the measurement:

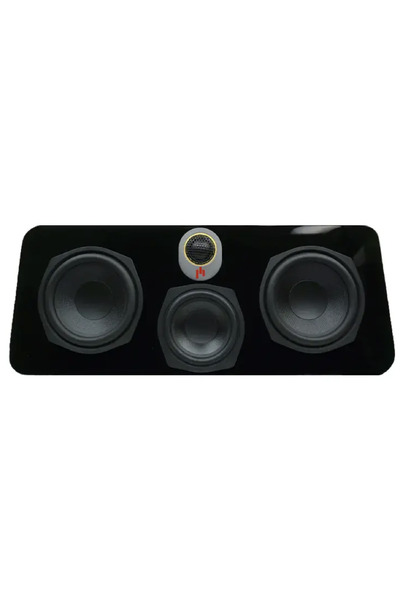

Aperion Audio Novus N5C is a passive center that cost around 550 USD

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 82.0Hz (resp. 67.4Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.82 and would be 5.74 with a perfect subwoofer.
      • Details: NBD: ON 0.569, LW 0.479, SP 0.442, PIR 0.415; SM: SP0.747, PIR0.31; LFQ 1.159, LFX 68Hz
    • Tonality (Preference) Score is 5.25 with an EQ and would be 7.67 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.495, LW 0.352, SP 0.358, PIR 0.313; SM: SP0.925, PIR0.929; LFQ 0.982, LFX 52Hz
  • Link to original Review: eac review. .
  • Vendor specifications:
    • Sensitivity 88 dB
    • Impedance 4 Ohm
    • Size
      • Width 485mm
      • Height 186mm
      • Depth 231 mm)
    • Weight 8.5 kg
Aperion Audio Novus N5C
AutomaticEQ (IIR)
Set preamp gain to: -3.9dB.
Type Freq Q Gain
3 51.0 1.06 4.0
3 121.0 1.86 -1.52
3 643.0 1.14 2.12
3 879.0 1.76 -3.85
3 2406.0 2.78 2.85
3 5536.0 2.97 1.5
3 10341.0 0.3 -3.83
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Aperion Audio Novus N5C filters_auto_eq

AutomaticEQ

Aperion Audio Novus N5C filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
