What we know about the measurement:

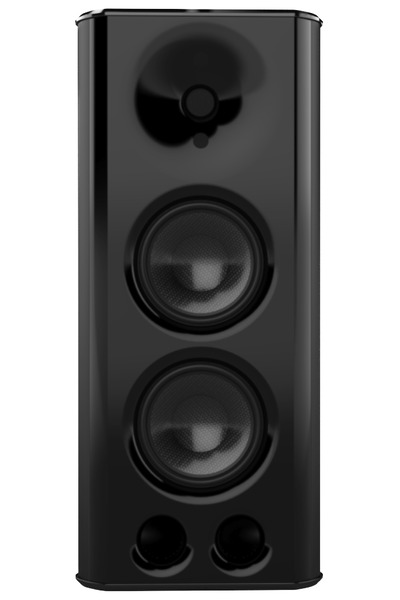

Theory Audio SB25 is a passive bookshelves that cost around 1700 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 67.4Hz (resp. 60.1Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.59 and would be 7.25 with a perfect subwoofer.
      • Details: NBD: ON 0.366, LW 0.355, SP 0.47, PIR 0.398; SM: SP0.795, PIR0.723; LFQ 1.163, LFX 60Hz
    • Tonality (Preference) Score is 5.66 with an EQ and would be 8.18 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.295, LW 0.252, SP 0.382, PIR 0.308; SM: SP0.928, PIR0.929; LFQ 1.163, LFX 55Hz
  • Link to original Review: asr review. .
  • Vendor specifications:
    • Dispersion: 120° horizontal and 40° vertical.
    • Sensitivity 94 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 117 dB
    • Size
      • Width 243mm
      • Height 546mm
      • Depth 96 mm)
    • Weight 11 kg
Theory Audio SB25
AutomaticEQ (IIR)
Set preamp gain to: -2.2dB.
Type Freq Q Gain
3 56.0 2.99 2.85
3 178.0 0.26 -0.97
3 1244.0 3.0 -2.79
3 1480.0 1.26 2.99
3 4342.0 1.96 -2.08
3 6818.0 2.23 -1.11
3 12301.0 2.96 -1.33
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Theory Audio SB25 filters_auto_eq

AutomaticEQ

Theory Audio SB25 filters_eq_full

Target v.s. EQ

Theory Audio SB25
Graphic EQ 15 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.25
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.25
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Theory Audio SB25
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 -0.25
3 5000.0 4.32 0.0
3 6300.0 4.32 -0.25
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Theory Audio SB25: comparison between EQs
Theory Audio SB25

Comparison betweens various EQs
