What we know about the measurement:

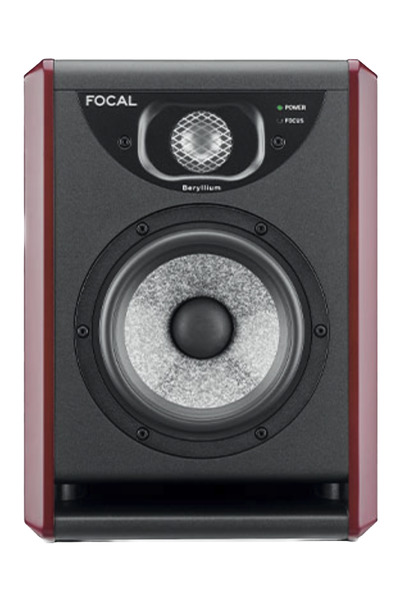

Focal Solo6 ST6 is an active bookshelves that cost around 2400 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 46.9Hz (resp. 42.5Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.57 and would be 6.58 with a perfect subwoofer.
      • Details: NBD: ON 0.361, LW 0.295, SP 0.356, PIR 0.302; SM: SP0.557, PIR0.305; LFQ 0.826, LFX 42Hz
    • Tonality (Preference) Score is 6.52 with an EQ and would be 8.25 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.38, LW 0.279, SP 0.275, PIR 0.219; SM: SP0.919, PIR0.937; LFQ 0.826, LFX 36Hz
  • Link to Original review.
  • Vendor specifications:
    • SPL
      • peak: 110 dB
    • Size
      • Width 246mm
      • Height 334mm
      • Depth 295 mm)
    • Weight 13.0 kg
Focal Solo6 ST6
AutomaticEQ (IIR)
Set preamp gain to: -3.5dB.
Type Freq Q Gain
3 37.0 2.53 2.96
3 62.0 1.7 -3.87
3 85.0 0.25 1.75
3 600.0 2.54 -0.98
3 2862.0 2.94 1.06
3 7059.0 0.84 -4.49
3 11476.0 0.8 1.83
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Focal Solo6 ST6 filters_auto_eq

AutomaticEQ

Focal Solo6 ST6 filters_eq_full

Target v.s. EQ

Focal Solo6 ST6
Graphic EQ 15 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 -0.25
3 100.0 2.14 0.0
3 160.0 2.14 0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.5
3 10000.0 2.14 0.0
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Focal Solo6 ST6
Graphic EQ 31 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.0
3 63.0 4.32 -0.25
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.25
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 -0.5
3 8000.0 4.32 -0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Focal Solo6 ST6: comparison between EQs
Focal Solo6 ST6

Comparison betweens various EQs

Focal Solo6 ST6

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
