What we know about the measurement:

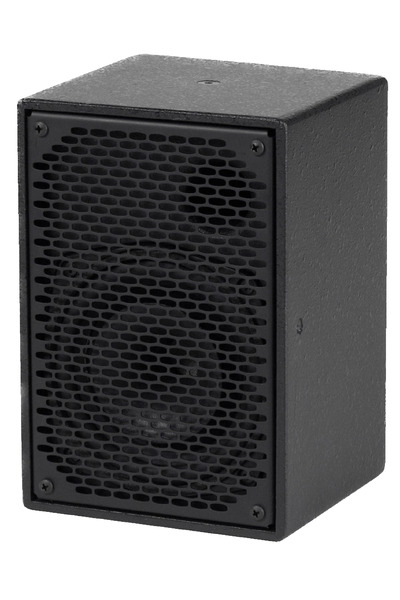

Fulcrum Acoustic RX599 is a passive liveportable

  • Quality of the measurement data is medium.
  • Origin of the data is Fulcrum Acoustic.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 91.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 71.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 125.0Hz (resp. 112.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 0.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.41 and would be 6.18 with a perfect subwoofer.
      • Details: NBD: ON 0.498, LW 0.461, SP 0.584, PIR 0.521; SM: SP0.784, PIR0.563; LFQ 0.673, LFX 109Hz
    • Tonality (Preference) Score is 3.41 with an EQ and would be 7.08 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.487, LW 0.382, SP 0.462, PIR 0.396; SM: SP0.885, PIR0.773; LFQ 0.673, LFX 102Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 90° vertical.
    • Sensitivity 85 dB
    • Impedance 16 Ohm
    • SPL
      • continuous: 107 dB
      • peak: 113 dB
    • Size
      • Width 142mm
      • Height 220mm
      • Depth 152 mm)
    • Weight 3.9 kg
Fulcrum Acoustic RX599
AutomaticEQ (IIR)
Set preamp gain to: -3.3dB.
Type Freq Q Gain
5 125.0 0.29 3.0
3 1442.0 2.76 1.36
3 1704.0 2.58 -0.27
3 2302.0 1.59 -1.19
3 2909.0 2.82 0.37
3 4966.0 2.83 -1.6
3 7173.0 0.94 -0.42
3 8478.0 2.61 2.09
5 13997.0 0.78 0.29
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Fulcrum Acoustic RX599 filters_auto_eq

AutomaticEQ

Fulcrum Acoustic RX599 filters_eq_full

Target v.s. EQ

Fulcrum Acoustic RX599
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.5
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 0.0
3 6300.0 2.14 0.25
3 10000.0 2.14 0.5
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Fulcrum Acoustic RX599
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.5
3 125.0 4.32 0.5
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.25
3 8000.0 4.32 0.5
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
