What we know about the measurement:

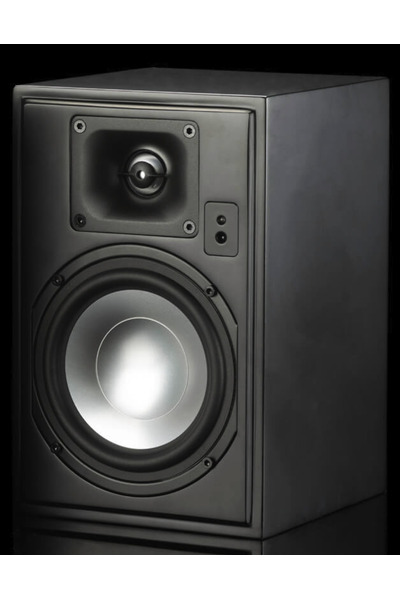

Vanatoo Transparent One Encore Plus is an active bookshelves speaker that cost around 450USD for a pair .

  • Quality of the measurement data is high .
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 43.9Hz (resp. 38.1Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.84 and would be 7.64 with a perfect subwoofer.
      • Details: NBD: ON 0.311, LW 0.277, SP 0.427, PIR 0.319; SM: SP0.82, PIR0.73; LFQ 0.395, LFX 38Hz
    • Tonality (Preference) Score is 6.77 with an EQ and would be 8.43 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.288, LW 0.238, SP 0.351, PIR 0.236; SM: SP0.937, PIR0.937; LFQ 0.395, LFX 35Hz
  • Link to original Review: eac review. .
