What we know about the measurement:

TAD COMPACT REFERENCE ONE CR1TX is a passive bookshelves that cost around 85000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 66.7Hz (resp. 49.1Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.07 and would be 7.41 with a perfect subwoofer.
      • Details: NBD: ON 0.433, LW 0.33, SP 0.218, PIR 0.218; SM: SP0.887, PIR0.63; LFQ 1.646, LFX 50Hz
    • Tonality (Preference) Score is 6.74 with an EQ and would be 8.44 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.357, LW 0.275, SP 0.212, PIR 0.19; SM: SP0.982, PIR0.956; LFQ 1.445, LFX 35Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 86 dB
    • Impedance 4 Ohm
    • Size
      • Width 341mm
      • Height 628mm
      • Depth 446mm
    • Weight 46kg

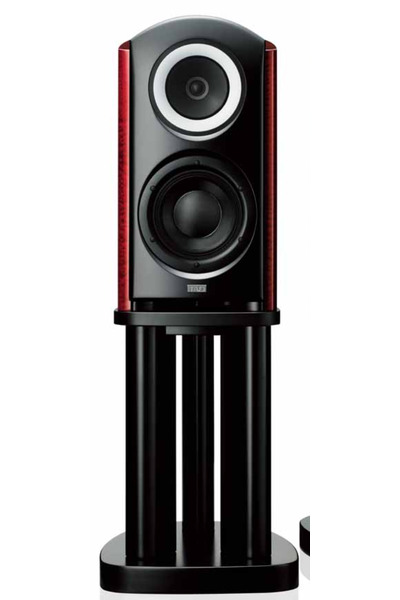

TAD COMPACT REFERENCE ONE CR1TX
AutomaticEQ (IIR)
Set preamp gain to: -5.0dB.
Type Freq Q Gain
PK 36.0 2.65 2.98
PK 67.0 0.45 2.73
PK 1010.0 0.96 -2.07
PK 1288.0 1.24 1.31
PK 1954.0 3.0 -2.72
PK 2324.0 1.06 2.67
PK 8694.0 2.95 -1.0
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
