We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

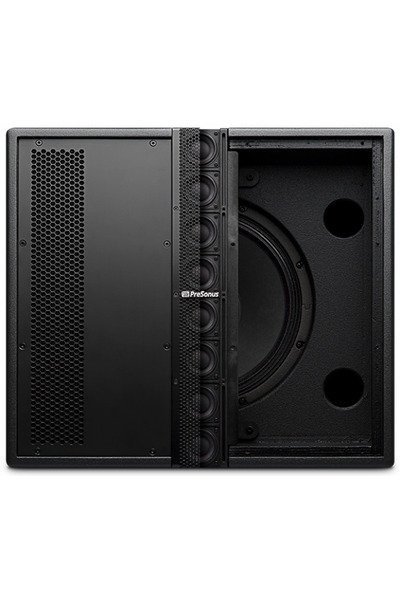

Presonus CDL12 is an active liveportable that cost around 1000 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is Presonus.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 47.5Hz (resp. 43.7Hz).
  • Reference level is normalised to -1.7dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 8.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.01 and would be 3.13 with a perfect subwoofer.
      • Details: NBD: ON 1.157, LW 0.69, SP 0.722, PIR 0.567; SM: SP0.11, PIR0.012; LFQ 1.714, LFX 45Hz
    • Tonality (Preference) Score is 3.18 with an EQ and would be 5.08 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.169, LW 0.67, SP 0.657, PIR 0.519; SM: SP0.779, PIR0.803; LFQ 1.714, LFX 39Hz
