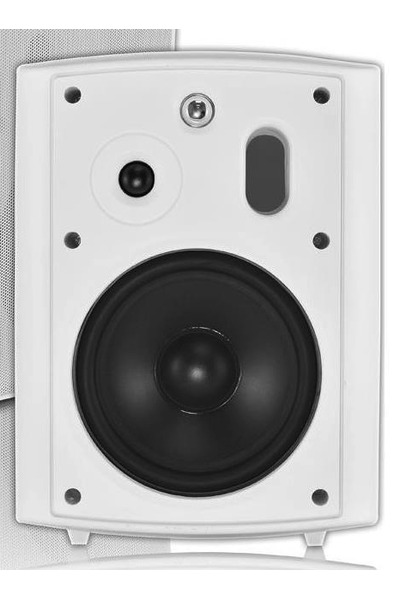

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m)
-
-3dB (resp. -6db) point v.s. reference is at 95.2Hz (resp. 74.7Hz).
-
Reference level is normalised to -0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 8.5dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 40.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-40.0°, 10.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 1.1
and would be 4.28 with a
perfect subwoofer.
- Details:
NBD: ON 0.895,
LW 0.688, SP
0.442, PIR
0.45; SM:
SP0.492,
PIR0.076; LFQ
0.49, LFX 79Hz
- Tonality (Preference) Score is 4.42
with an EQ and would be 6.79 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.759,
LW 0.542, SP
0.446, PIR
0.356; SM:
SP0.923,
PIR0.889; LFQ 0.429, LFX 51Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
106.0 |
0.51 |
2.99 |
| 3 |
478.0 |
1.23 |
1.73 |
| 3 |
844.0 |
0.68 |
-2.58 |
| 3 |
2226.0 |
2.97 |
-2.62 |
| 3 |
3438.0 |
2.99 |
-2.72 |
| 3 |
5490.0 |
1.83 |
-2.73 |
| 3 |
9691.0 |
0.58 |
-2.81 |
| 3 |
11843.0 |
0.52 |
-2.87 |
| 3 |
14965.0 |
0.59 |
-2.88 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -2.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
407.0 |
2.5 |
0.5 |
| 3 |
532.0 |
7.0 |
-0.7 |
| 3 |
625.0 |
12.0 |
-1.8 |
| 3 |
687.0 |
15.0 |
-1.0 |
| 3 |
756.0 |
10.0 |
-1.0 |
| 3 |
885.0 |
6.0 |
-2.7 |
| 3 |
1026.0 |
9.0 |
-2.8 |
| 3 |
1240.0 |
15.0 |
3.0 |
| 3 |
1528.0 |
6.5 |
2.3 |
| 3 |
1775.0 |
12.0 |
-0.9 |
| 3 |
1900.0 |
10.0 |
1.1 |
| 3 |
2105.0 |
12.0 |
-1.8 |
| 3 |
2310.0 |
18.0 |
1.4 |
| 3 |
2830.0 |
10.0 |
2.5 |
| 3 |
3730.0 |
12.0 |
-1.6 |
| 3 |
4040.0 |
10.0 |
2.2 |
| 3 |
4540.0 |
10.0 |
1.3 |
| 3 |
6400.0 |
1.1 |
-2.3 |
| 3 |
12200.0 |
1.4 |
-2.7 |
| 3 |
16900.0 |
1.1 |
-3.4 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
-0.5 |
| 3 |
1000.0 |
2.14 |
-0.75 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.25 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.75 |
| 3 |
10000.0 |
2.14 |
-0.75 |
| 3 |
16000.0 |
2.14 |
-1.0 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
-0.25 |
| 3 |
200.0 |
4.32 |
-0.25 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
-0.25 |
| 3 |
630.0 |
4.32 |
-0.5 |
| 3 |
800.0 |
4.32 |
-0.5 |
| 3 |
1000.0 |
4.32 |
-0.75 |
| 3 |
1250.0 |
4.32 |
1.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
-0.25 |
| 3 |
2500.0 |
4.32 |
0.25 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
-0.5 |
| 3 |
6300.0 |
4.32 |
-0.75 |
| 3 |
8000.0 |
4.32 |
-0.75 |
| 3 |
10000.0 |
4.32 |
-0.75 |
| 3 |
12000.0 |
4.32 |
-1.0 |
| 3 |
16000.0 |
4.32 |
-1.0 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
