What we know about the measurement:

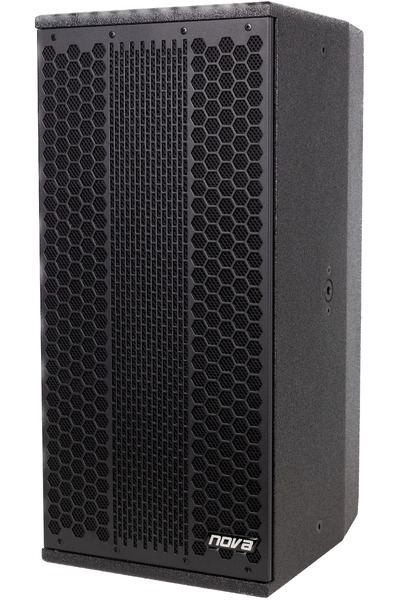

Novacoustic Pariz P28 is a passive liveportable

  • Quality of the measurement data is unknown.
  • Origin of the data is Novacoustic.
  • Format of the data is a GLL file .
  • Sensitivity: 90.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 77.5Hz (resp. 71.0Hz).
  • Reference level is normalised to -2.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 40.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.82 and would be 3.85 with a perfect subwoofer.
      • Details: NBD: ON 1.215, LW 0.778, SP 0.926, PIR 0.809; SM: SP0.783, PIR0.696; LFQ 2.55, LFX 73Hz
    • Tonality (Preference) Score is 2.28 with an EQ and would be 5.2 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.95, LW 0.641, SP 0.816, PIR 0.692; SM: SP0.901, PIR0.844; LFQ 2.55, LFX 68Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 40° vertical.
    • Sensitivity 100 dB
    • Impedance 8 Ohm
    • SPL
      • max: 136 dB
    • Size
      • Width 270mm
      • Height 590mm
      • Depth 330 mm)
    • Weight 18.0 kg
Novacoustic Pariz P28
AutomaticEQ (IIR)
Set preamp gain to: -5.9dB.
Type Freq Q Gain
3 74.0 3.0 2.71
3 289.0 2.99 -2.0
3 1083.0 3.0 -2.05
3 3912.0 0.61 1.45
3 4654.0 1.64 2.98
3 5536.0 1.13 2.99
3 9319.0 1.41 -6.79
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Novacoustic Pariz P28 filters_auto_eq

AutomaticEQ

Novacoustic Pariz P28 filters_eq_full

Target v.s. EQ

Novacoustic Pariz P28
Graphic EQ 15 bands
Set preamp gain to: -1.5dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 0.0
3 160.0 2.14 0.0
3 250.0 2.14 -0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.5
3 2500.0 2.14 0.5
3 4000.0 2.14 1.25
3 6300.0 2.14 1.0
3 10000.0 2.14 0.0
3 16000.0 2.14 1.5
Download

These EQ is designed for a 15 bands graphical EQ.

Novacoustic Pariz P28
Graphic EQ 31 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 -0.25
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 -0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.75
3 5000.0 4.32 0.75
3 6300.0 4.32 0.75
3 8000.0 4.32 0.25
3 10000.0 4.32 -0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Novacoustic Pariz P28: comparison between EQs
Novacoustic Pariz P28

Comparison betweens various EQs

Novacoustic Pariz P28

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
