What we know about the measurement:

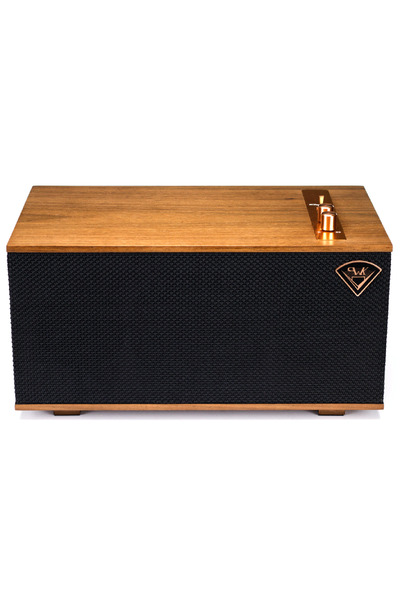

Klipsch The Three is an active bookshelves that cost around 399 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 42.5Hz (resp. 38.1Hz).
  • Reference level is normalised to 0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.2dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.96 and would be 4.77 with a perfect subwoofer.
      • Details: NBD: ON 0.804, LW 0.681, SP 0.671, PIR 0.655; SM: SP0.633, PIR0.452; LFQ 0.569, LFX 38Hz
    • Tonality (Preference) Score is 5.25 with an EQ and would be 6.91 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.584, LW 0.431, SP 0.457, PIR 0.376; SM: SP0.868, PIR0.781; LFQ 0.569, LFX 35Hz
  • Link to Original review.
  • Note: ...performed over 700 measurement which resulted in error rate of less than 1% below about 7 kHz. Above that the error shot way up due to me setting the reference axis to the woofer center, not the tweeter. This severely disadvantaged the NFS system in computing the sound field as the tweeter took over more of the duty. I picked the woofer because I incorrectly assumed this was a mono speaker and dual tweeters were used for some kind of spatial effect....
Klipsch The Three
AutomaticEQ (IIR)
Set preamp gain to: -1.8dB.
Type Freq Q Gain
PK 42.0 1.28 2.98
PK 81.0 1.69 -2.96
PK 143.0 0.67 -2.98
PK 691.0 0.95 2.89
PK 998.0 1.37 1.12
PK 4345.0 1.06 -2.9
PK 5135.0 1.4 -2.76
PK 6489.0 2.92 -3.0
LS 8478.0 0.46 -1.39
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Klipsch The Three
Graphic EQ 15 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 -0.5
PK 100.0 2.14 -0.75
PK 160.0 2.14 -0.75
PK 250.0 2.14 -0.5
PK 400.0 2.14 -0.25
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 0.0
PK 4000.0 2.14 -0.75
PK 6300.0 2.14 -0.75
PK 10000.0 2.14 0.5
PK 16000.0 2.14 -0.25
Download
This EQ is designed for a 15 bands graphical EQ.
Klipsch The Three
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.25
PK 31.0 4.32 0.25
PK 40.0 4.32 0.25
PK 50.0 4.32 0.0
PK 63.0 4.32 -0.5
PK 80.0 4.32 -0.75
PK 100.0 4.32 -0.75
PK 125.0 4.32 -0.75
PK 160.0 4.32 -0.75
PK 200.0 4.32 -0.5
PK 250.0 4.32 -0.5
PK 315.0 4.32 -0.5
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.0
PK 1600.0 4.32 -0.25
PK 2000.0 4.32 -0.25
PK 2500.0 4.32 0.0
PK 3150.0 4.32 -0.5
PK 4000.0 4.32 -0.5
PK 5000.0 4.32 -0.75
PK 6300.0 4.32 -0.75
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 0.5
PK 12000.0 4.32 0.75
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
Klipsch The Three: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
