We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

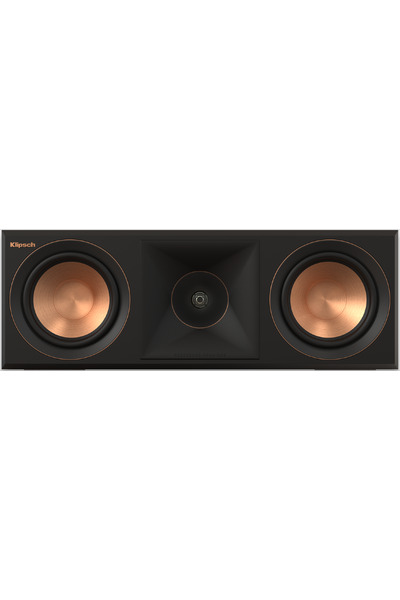

Klipsch RP-500C II is a passive center that cost around 500 USD

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 82.0Hz (resp. 67.4Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.03 and would be 6.69 with a perfect subwoofer.
      • Details: NBD: ON 0.326, LW 0.319, SP 0.387, PIR 0.334; SM: SP0.81, PIR0.353; LFQ 0.716, LFX 60Hz
    • Tonality (Preference) Score is 6.12 with an EQ and would be 8.31 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.284, LW 0.272, SP 0.347, PIR 0.279; SM: SP0.973, PIR0.938; LFQ 0.753, LFX 46Hz
  • Horizontal measurement
  • Link to Original review.
