What we know about the measurement:

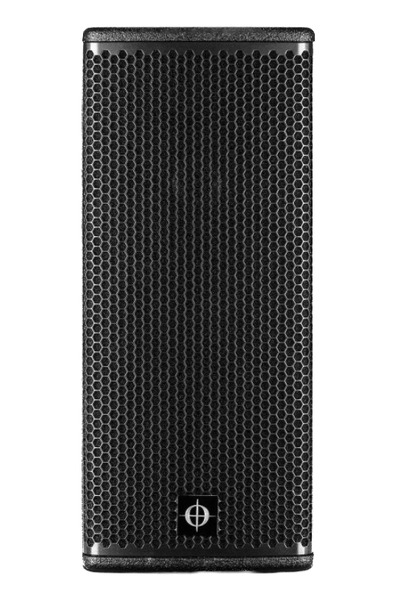

Coda Audio HOPS8 is a passive liveportable

  • Quality of the measurement data is high.
  • Origin of the data is Coda Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 100.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 80.2dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 60.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.24 and would be 5.95 with a perfect subwoofer.
      • Details: NBD: ON 0.636, LW 0.586, SP 0.647, PIR 0.588; SM: SP0.823, PIR0.693; LFQ 0.949, LFX 61Hz
    • Tonality (Preference) Score is 4.52 with an EQ and would be 7.18 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.493, LW 0.413, SP 0.52, PIR 0.452; SM: SP0.933, PIR0.896; LFQ 0.949, LFX 60Hz
Coda Audio HOPS8
AutomaticEQ (IIR)
Set preamp gain to: -1.7dB.
Type Freq Q Gain
3 62.0 3.0 2.95
3 83.0 0.84 -3.64
3 560.0 1.39 2.49
3 689.0 2.92 -2.08
3 2862.0 3.0 -2.52
3 5165.0 2.96 -2.8
3 11085.0 2.96 -2.55
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Coda Audio HOPS8 filters_auto_eq

AutomaticEQ

Coda Audio HOPS8 filters_eq_full

Target v.s. EQ

Coda Audio HOPS8
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Coda Audio HOPS8
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 -0.5
3 100.0 4.32 -0.5
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.5
3 2000.0 4.32 -0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Coda Audio HOPS8: comparison between EQs
Coda Audio HOPS8

Comparison betweens various EQs

Coda Audio HOPS8

Improvements made by EQ
