We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

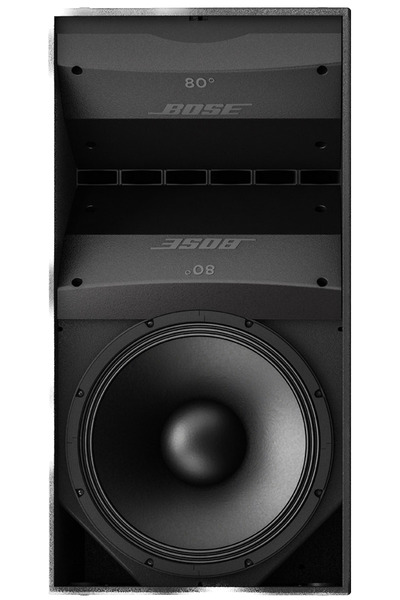

Bose ArenaMatch AM40 is a passive toursound speaker that cost around 5000USD each .

  • Quality of the measurement data is high .
  • Origin of the data is Bose.
  • Format of the data is a GLL file .
  • Sensitivity: 111.2dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 91.2dB.
  • -3dB (resp. -6db) point v.s. reference is at 54.5Hz (resp. 53.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.48 and would be 3.8 with a perfect subwoofer.
      • Details: NBD: ON 0.946, LW 0.799, SP 0.804, PIR 0.771; SM: SP0.539, PIR0.336; LFQ 2.039, LFX 49Hz
    • Tonality (Preference) Score is 3.96 with an EQ and would be 6.28 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.749, LW 0.55, SP 0.587, PIR 0.523; SM: SP0.909, PIR0.874; LFQ 2.039, LFX 49Hz
  • .
  • Vendor specifications:
    • Dispersion: 60° horizontal and 40° vertical.
    • Sensitivity 100 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 127 dB
    • Size
      • Width 783mm
      • Height 409mm
      • Depth 420 mm)
    • Weight 36.3 kg
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
