What we know about the measurement:

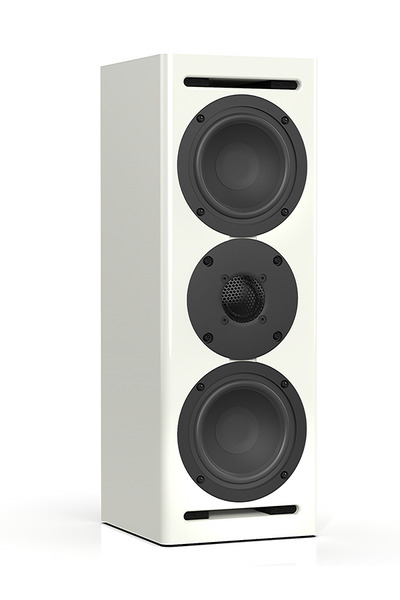

Ascend Acoustics Sierra Duo V2 LCR Titan is a passive bookshelves that cost around 1338 USD for a pair.
- Quality of the measurement data is high.
- Origin of the data is Ascend Acoustics.
- Format of the data is a set of 36 horizontal and 36 vertical measurements .
- Sensitivity: 86.1dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 79.1Hz (resp. 67.4Hz).
- Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.7dB over the same frequency range.
- Directivity
- Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.16
and would be 7.78 with a
perfect subwoofer.
- Details: NBD: ON 0.396, LW 0.366, SP 0.393, PIR 0.334; SM: SP0.941, PIR0.897; LFQ 0.902, LFX 58Hz
- Tonality (Preference) Score is 6.25
with an EQ and would be 8.5 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.278, LW 0.241, SP 0.314, PIR 0.227; SM: SP0.955, PIR0.945; LFQ 0.902, LFX 48Hz
- Tonality (Preference) Score is 5.16
and would be 7.78 with a
perfect subwoofer.
-
Vendor specifications:
- Sensitivity 86.0 dB
- Impedance 8 Ohm
- Size
- Width 146mm
- Height 412mm
- Depth 152mm
- Weight 5.4kg
