What we know about the measurement:

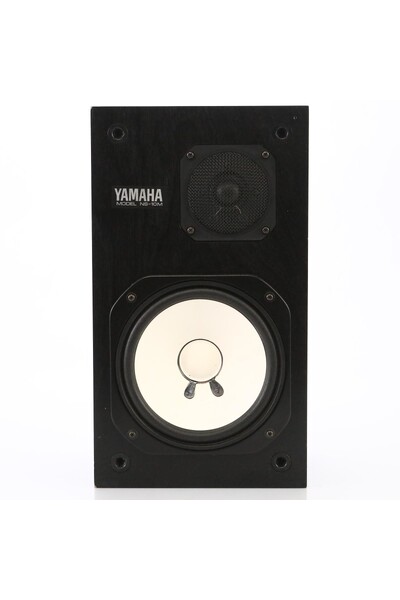

Yamaha NS-10M Studio is a passive bookshelves

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 87.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 120.8Hz (resp. 91.6Hz).
  • Reference level is normalised to -0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.19 and would be 5.58 with a perfect subwoofer.
      • Details: NBD: ON 0.676, LW 0.53, SP 0.431, PIR 0.441; SM: SP0.683, PIR0.389; LFQ 1.014, LFX 88Hz
  • Link to original Review: yt review. .
  • Vendor specifications:
    • Sensitivity 90 dB
    • Impedance 8 Ohm
    • Size
      • Width 215mm
      • Height 382mm
      • Depth 199mm
    • Weight 6kg
;
