- Quality of the measurement data is high.
- Origin of the data is ASR.
- Format of the data is generated by a Klippel NFS .
-
Sensitivity:
- Measured: 82.2 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 87.9Hz (resp. 68.8Hz).
- Reference level is normalised to -0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 7.3dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 2.11
and would be 4.86 with a
perfect subwoofer.
- Details: NBD: ON 0.645, LW 0.565, SP 0.462, PIR 0.482; SM: SP0.107, PIR0.098; LFQ 0.664, LFX 62Hz
- Tonality (Preference) Score is 4.65
with an EQ and would be 7.02 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.444, LW 0.351, SP 0.301, PIR 0.297; SM: SP0.556, PIR0.575; LFQ 0.664, LFX 51Hz
- Tonality (Preference) Score is 2.11
and would be 4.86 with a
perfect subwoofer.
- Link to original Review: asr review. Links to other reviews: diy review .

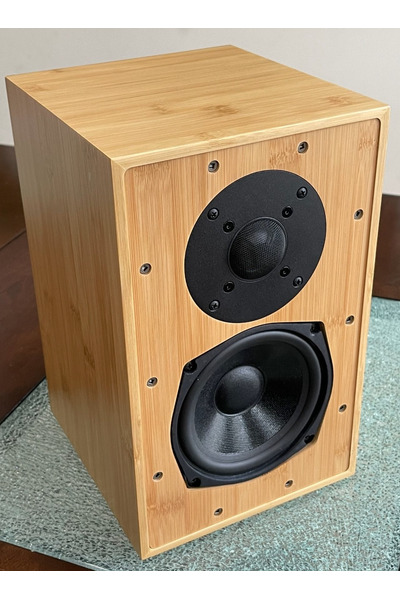

XSA Labs Vanguard is a passive bookshelves that cost around 1000 USD for a pair.
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.5dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 54.0 | 0.9 | 3.0 |
| PK | 299.0 | 1.39 | 2.6 |
| PK | 600.0 | 0.67 | 1.66 |
| PK | 942.0 | 2.99 | -2.19 |
| PK | 1244.0 | 2.88 | -3.0 |
| PK | 2324.0 | 1.61 | -3.41 |
| PK | 11882.0 | 0.25 | 2.94 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| AutomaticEQ LW (IIR) | |||
| Set preamp gain to: -6.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 87.0 | 4.14 | 3.43 |
| PK | 366.0 | 0.82 | 3.73 |
| PK | 1220.0 | 2.14 | -2.79 |
| PK | 2226.0 | 4.43 | -1.62 |
| PK | 4492.0 | 6.0 | 4.88 |
| PK | 6276.0 | 3.23 | 2.54 |
| PK | 11077.0 | 0.6 | 5.51 |
| Download | |||
This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
| maiky76@ASR LW (IIR) | |||
| Set preamp gain to: -1.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| HP | 52.58 | 1.15 | 0.0 |
| PK | 133.99 | 1.54 | -3.79 |
| PK | 1160.68 | 1.39 | -5.46 |
| PK | 2181.91 | 2.21 | -3.61 |
| PK | 3228.22 | 2.02 | -1.39 |
| PK | 7937.79 | 0.51 | 1.89 |
| Download | |||
This EQ is designed by ASR member maiky76. This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
| maiky76@ASR (IIR) | |||
| Set preamp gain to: -1.3dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| HP | 52.09 | 1.15 | 0.0 |
| PK | 132.87 | 1.2 | -3.59 |
| PK | 1175.02 | 1.27 | -5.39 |
| PK | 2391.92 | 1.77 | -4.61 |
| PK | 3661.89 | 4.99 | -4.1 |
| PK | 4354.75 | 2.39 | 3.75 |
| PK | 4982.74 | 4.99 | -2.75 |
| Download | |||
This EQ is designed by ASR member maiky76. This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.9dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.5 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | 0.5 |
| PK | 400.0 | 2.14 | 0.5 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | -0.25 |
| PK | 1600.0 | 2.14 | -0.25 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | 0.5 |
| PK | 6300.0 | 2.14 | 0.75 |
| PK | 10000.0 | 2.14 | 0.75 |
| PK | 16000.0 | 2.14 | 0.75 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -1.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.25 |
| PK | 250.0 | 4.32 | 0.5 |
| PK | 315.0 | 4.32 | 0.5 |
| PK | 400.0 | 4.32 | 0.5 |
| PK | 500.0 | 4.32 | 0.25 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | -0.25 |
| PK | 1250.0 | 4.32 | -0.25 |
| PK | 1600.0 | 4.32 | -0.25 |
| PK | 2000.0 | 4.32 | -0.25 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | 0.25 |
| PK | 5000.0 | 4.32 | 0.5 |
| PK | 6300.0 | 4.32 | 0.5 |
| PK | 8000.0 | 4.32 | 0.5 |
| PK | 10000.0 | 4.32 | 0.5 |
| PK | 12000.0 | 4.32 | 0.5 |
| PK | 16000.0 | 4.32 | 1.0 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
This EQ is designed for a 31 bands graphical EQ.
