We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

Wharfedale Diamond 12.1 is a passive bookshelves that cost around 800 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 54.2Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.3dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.98 and would be 7.34 with a perfect subwoofer.
      • Details: NBD: ON 0.396, LW 0.324, SP 0.328, PIR 0.293; SM: SP0.836, PIR0.658; LFQ 0.46, LFX 51Hz
    • Tonality (Preference) Score is 5.71 with an EQ and would be 7.91 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.392, LW 0.316, SP 0.29, PIR 0.271; SM: SP0.954, PIR0.87; LFQ 0.48, LFX 46Hz
  • Link to Original review.

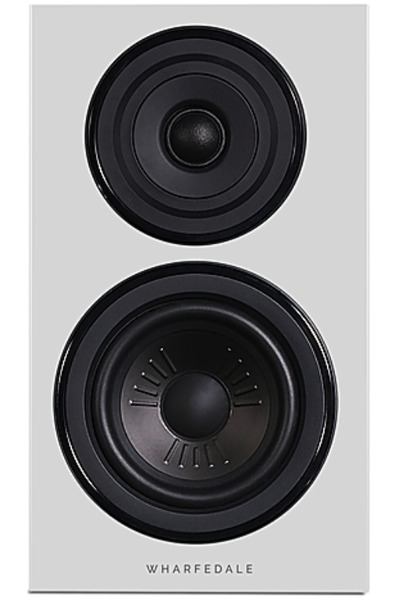

Wharfedale Diamond 12.1
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
LS 81.0 0.47 2.98
PK 181.0 0.43 -0.97
PK 280.0 1.72 1.0
PK 494.0 1.16 -0.38
PK 1704.0 2.72 2.3
PK 2813.0 2.43 1.04
PK 3676.0 2.58 -1.21
PK 5677.0 2.16 -1.62
PK 16000.0 0.98 -0.64
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Graphic EQ 15 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 -0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 -0.25
PK 400.0 2.14 -0.25
PK 630.0 2.14 -0.25
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.75
PK 2500.0 2.14 0.5
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.25
PK 10000.0 2.14 0.0
PK 16000.0 2.14 0.25
Download
This EQ is designed for a 15 bands graphical EQ.
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.0
PK 100.0 4.32 -0.25
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.25
PK 250.0 4.32 -0.25
PK 315.0 4.32 -0.25
PK 400.0 4.32 -0.25
PK 500.0 4.32 -0.25
PK 630.0 4.32 -0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.0
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.75
PK 2000.0 4.32 0.5
PK 2500.0 4.32 0.5
PK 3150.0 4.32 0.0
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 0.0
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.0
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
