What we know about the measurement:

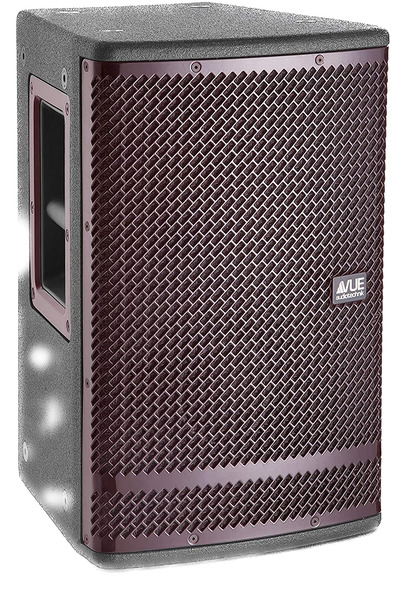

Vue Audiotechnik H-8 is an active liveportable that cost around 3800 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Vue Audiotechnik.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 77.5Hz (resp. 69.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.92 and would be 4.78 with a perfect subwoofer.
      • Details: NBD: ON 0.666, LW 0.579, SP 0.744, PIR 0.671; SM: SP0.702, PIR0.332; LFQ 1.048, LFX 67Hz
    • Tonality (Preference) Score is 4.18 with an EQ and would be 6.93 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.534, LW 0.413, SP 0.566, PIR 0.492; SM: SP0.941, PIR0.885; LFQ 1.048, LFX 63Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 40° vertical.
    • Sensitivity 94 dB
    • SPL
      • continuous: 116 dB
      • peak: 122 dB
    • Size
      • Width 286mm
      • Height 460mm
      • Depth 303mm
    • Weight 23.22kg
Vue Audiotechnik H-8
AutomaticEQ (IIR)
Set preamp gain to: -4.9dB.
Type Freq Q Gain
PK 148.0 1.3 2.78
PK 262.0 2.56 2.99
PK 378.0 2.8 -1.32
PK 844.0 2.64 -0.93
PK 1648.0 2.95 -0.38
PK 2545.0 2.95 -2.87
PK 5310.0 1.25 -1.06
PK 6709.0 2.71 -2.81
LS 16000.0 0.81 1.37
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Vue Audiotechnik H-8 filters_auto_eq

AutomaticEQ

Vue Audiotechnik H-8 filters_eq_full

Target v.s. EQ

Vue Audiotechnik H-8
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 0.5
PK 160.0 2.14 0.75
PK 250.0 2.14 0.75
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 -0.25
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 -0.5
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.5
PK 10000.0 2.14 0.25
PK 16000.0 2.14 0.75
Download

These EQ is designed for a 15 bands graphical EQ.

Vue Audiotechnik H-8
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.25
PK 125.0 4.32 0.75
PK 160.0 4.32 0.5
PK 200.0 4.32 0.5
PK 250.0 4.32 0.75
PK 315.0 4.32 0.25
PK 400.0 4.32 0.0
PK 500.0 4.32 0.25
PK 630.0 4.32 0.25
PK 800.0 4.32 -0.25
PK 1000.0 4.32 -0.25
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.0
PK 2500.0 4.32 -0.5
PK 3150.0 4.32 -0.25
PK 4000.0 4.32 0.0
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 0.25
PK 10000.0 4.32 0.25
PK 12000.0 4.32 0.0
PK 16000.0 4.32 0.5
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Vue Audiotechnik H-8: comparison between EQs
Vue Audiotechnik H-8

Comparison betweens various EQs

Vue Audiotechnik H-8

Improvements made by EQ
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
