What we know about the measurement:

Vue Audiotechnik H-12 is an active liveportable that cost around 6000 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Vue Audiotechnik.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 87.5Hz (resp. 65.0Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.62 and would be 6.37 with a perfect subwoofer.
      • Details: NBD: ON 0.587, LW 0.478, SP 0.628, PIR 0.532; SM: SP0.884, PIR0.754; LFQ 1.737, LFX 63Hz
    • Tonality (Preference) Score is 4.91 with an EQ and would be 7.33 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.512, LW 0.376, SP 0.502, PIR 0.375; SM: SP0.943, PIR0.884; LFQ 1.737, LFX 53Hz
  • Vendor specifications:
    • Dispersion: 120° horizontal and 50° vertical.
    • Sensitivity 96 dB
    • SPL
      • continuous: 120 dB
      • peak: 125 dB
    • Size
      • Width 368mm
      • Height 610mm
      • Depth 387 mm)
    • Weight 35.19 kg

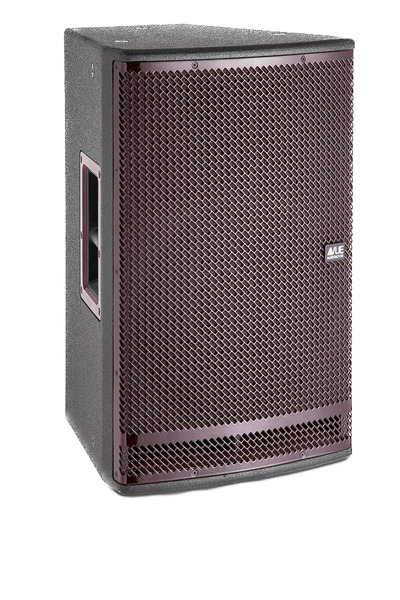

Vue Audiotechnik H-12
AutomaticEQ (IIR)
Set preamp gain to: -4.2dB.
Type Freq Q Gain
5 87.0 1.11 2.72
3 378.0 0.46 -0.11
3 604.0 2.94 -1.49
3 739.0 0.85 -0.07
3 1261.0 2.62 2.56
3 2302.0 1.01 -2.81
3 3676.0 2.35 0.69
3 9064.0 2.95 -2.92
5 16000.0 0.55 1.5
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Vue Audiotechnik H-12 filters_auto_eq

AutomaticEQ

Vue Audiotechnik H-12 filters_eq_full

Target v.s. EQ

Vue Audiotechnik H-12
Graphic EQ 15 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.25
3 16000.0 2.14 1.25
Download

These EQ is designed for a 15 bands graphical EQ.

Vue Audiotechnik H-12
Graphic EQ 31 bands
Set preamp gain to: -1.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.25
3 125.0 4.32 0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 1.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Vue Audiotechnik H-12: comparison between EQs
Vue Audiotechnik H-12

Comparison betweens various EQs

Vue Audiotechnik H-12

Improvements made by EQ
