What we know about the measurement:

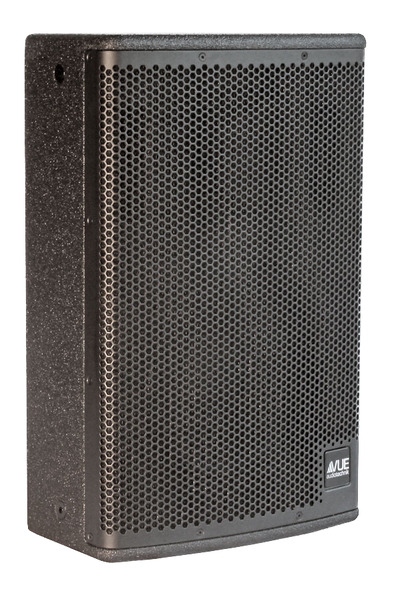

Vue Audiotechnik A-10 is a passive liveportable that cost around 1200 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Vue Audiotechnik.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 92.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 72.0dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 80.0Hz (resp. 71.0Hz).
  • Reference level is normalised to 0.8dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.06 and would be 5.03 with a perfect subwoofer.
      • Details: NBD: ON 0.717, LW 0.627, SP 0.78, PIR 0.663; SM: SP0.738, PIR0.483; LFQ 1.897, LFX 70Hz
    • Tonality (Preference) Score is 4.11 with an EQ and would be 7.03 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.566, LW 0.453, SP 0.572, PIR 0.445; SM: SP0.934, PIR0.901; LFQ 1.897, LFX 68Hz
  • Vendor specifications:
    • Dispersion: 70° horizontal and 55° vertical.
    • Sensitivity 95 dB
    • SPL
      • continuous: 121 dB
      • peak: 127 dB
    • Size
      • Width 340mm
      • Height 535mm
      • Depth 330 mm)
    • Weight 14.3 kg
Vue Audiotechnik A-10
AutomaticEQ (IIR)
Set preamp gain to: -2.3dB.
Type Freq Q Gain
3 134.0 1.28 -1.08
3 432.0 2.95 -2.97
3 547.0 2.89 2.79
3 1594.0 1.83 2.91
3 2302.0 2.96 -2.86
3 3676.0 2.66 -2.66
3 5310.0 2.9 -2.92
3 7930.0 2.32 -2.38
3 14473.0 0.68 -0.54
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Vue Audiotechnik A-10 filters_auto_eq

AutomaticEQ

Vue Audiotechnik A-10 filters_eq_full

Target v.s. EQ

Vue Audiotechnik A-10
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 -0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.75
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.5
3 6300.0 2.14 -0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Vue Audiotechnik A-10
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 -0.25
3 500.0 4.32 0.5
3 630.0 4.32 0.5
3 800.0 4.32 0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 1.0
3 2000.0 4.32 0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 0.5
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
