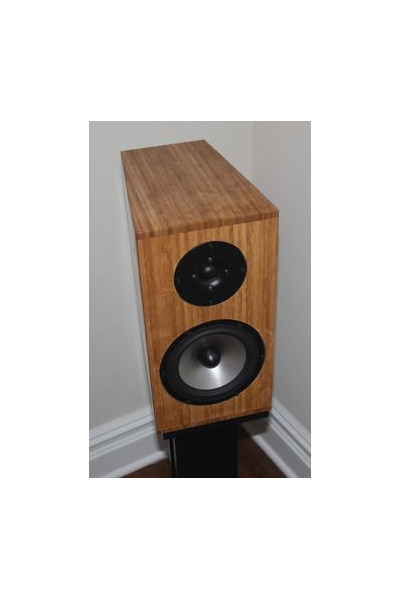

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 84.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 70.3Hz (resp. 49.8Hz).
-
Reference level is normalised to -0.4dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.9dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.84
and would be 6.92 with a
perfect subwoofer.
- Details:
NBD: ON 0.475,
LW 0.356, SP
0.313, PIR
0.288; SM:
SP0.85,
PIR0.553; LFQ
0.482, LFX 43Hz
- Tonality (Preference) Score is 7.09
with an EQ and would be 8.59 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.317,
LW 0.222, SP
0.254, PIR
0.184; SM:
SP0.98,
PIR0.97; LFQ 0.615, LFX 32Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.7dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
70.0 |
0.47 |
2.91 |
| 3 |
214.0 |
0.26 |
2.93 |
| 3 |
342.0 |
1.05 |
0.99 |
| 3 |
625.0 |
1.41 |
-2.69 |
| 3 |
739.0 |
1.98 |
-0.13 |
| 3 |
1141.0 |
2.78 |
-2.7 |
| 3 |
2302.0 |
2.8 |
-0.82 |
| 3 |
4645.0 |
2.88 |
-1.66 |
| 3 |
10361.0 |
1.24 |
-1.51 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -0.0dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
343.0 |
1.4 |
0.9 |
| 3 |
405.0 |
13.0 |
0.7 |
| 3 |
460.0 |
12.0 |
-0.7 |
| 3 |
538.0 |
5.0 |
-0.3 |
| 3 |
702.0 |
1.0 |
-3.4 |
| 3 |
958.0 |
12.0 |
-0.5 |
| 3 |
1060.0 |
5.0 |
-1.9 |
| 3 |
1090.0 |
8.0 |
0.6 |
| 3 |
1243.0 |
6.0 |
-1.2 |
| 3 |
1420.0 |
9.0 |
0.5 |
| 3 |
1649.0 |
11.0 |
1.0 |
| 3 |
1828.0 |
14.0 |
-0.7 |
| 3 |
2085.0 |
18.0 |
-0.8 |
| 3 |
2236.0 |
15.0 |
0.6 |
| 3 |
2308.0 |
1.0 |
-2.1 |
| 3 |
2380.0 |
15.0 |
-0.6 |
| 3 |
4666.0 |
3.498 |
-1.6 |
| 3 |
8170.0 |
1.0 |
-2.3 |
| 3 |
11567.0 |
1.425 |
-1.9 |
| 3 |
17413.0 |
5.0 |
-1.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.5 |
| 3 |
250.0 |
2.14 |
0.5 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
-0.25 |
| 3 |
1000.0 |
2.14 |
-0.5 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
0.25 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.5 |
| 3 |
160.0 |
4.32 |
0.5 |
| 3 |
200.0 |
4.32 |
0.5 |
| 3 |
250.0 |
4.32 |
0.5 |
| 3 |
315.0 |
4.32 |
0.5 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
-0.25 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.25 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.25 |
| 3 |
4000.0 |
4.32 |
0.25 |
| 3 |
5000.0 |
4.32 |
0.25 |
| 3 |
6300.0 |
4.32 |
0.25 |
| 3 |
8000.0 |
4.32 |
0.0 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
0.0 |
| 3 |
16000.0 |
4.32 |
0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
