What we know about the measurement:

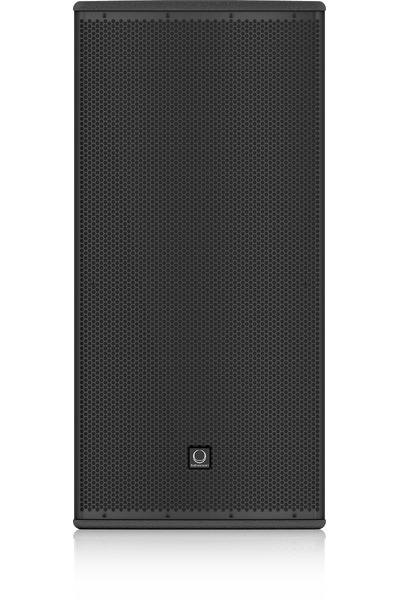

Turbosound TCS122 is a passive liveportable

  • Quality of the measurement data is low.
  • Origin of the data is Turbosound.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 99.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 79.3dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 45.0Hz (resp. 40.0Hz).
  • Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 0.14 and would be 2.04 with a perfect subwoofer.
      • Details: NBD: ON 1.069, LW 1.098, SP 1.129, PIR 1.089; SM: SP0.427, PIR0.121; LFQ 2.348, LFX 39Hz
    • Tonality (Preference) Score is 3.95 with an EQ and would be 5.78 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.666, LW 0.675, SP 0.699, PIR 0.648; SM: SP0.896, PIR0.733; LFQ 2.348, LFX 38Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 40° vertical.
    • Sensitivity 96 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 130 dB
    • Size
      • Width 399mm
      • Height 834mm
      • Depth 425 mm)
    • Weight 26.5 kg
Turbosound TCS122
AutomaticEQ (IIR)
Set preamp gain to: -2.5dB.
Type Freq Q Gain
3 76.0 3.0 -3.0
3 9993.0 0.78 -5.45
3 114.0 2.82 -2.51
3 187.0 2.99 3.0
3 448.0 1.53 2.99
3 2053.0 1.04 2.93
3 772.0 3.0 -4.53
3 268.0 3.0 -5.97
3 9502.0 0.86 -2.61
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Turbosound TCS122 filters_auto_eq

AutomaticEQ

Turbosound TCS122 filters_eq_full

Target v.s. EQ

Turbosound TCS122
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 -0.25
3 100.0 2.14 -0.5
3 160.0 2.14 0.25
3 250.0 2.14 -0.5
3 400.0 2.14 0.5
3 630.0 2.14 0.25
3 1000.0 2.14 -0.25
3 1600.0 2.14 0.0
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.5
3 10000.0 2.14 -1.0
3 16000.0 2.14 -0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Turbosound TCS122
Graphic EQ 31 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 -0.25
3 80.0 4.32 -0.5
3 100.0 4.32 -0.5
3 125.0 4.32 -0.5
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 -0.5
3 315.0 4.32 -0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 -0.5
3 1000.0 4.32 -0.25
3 1250.0 4.32 -0.25
3 1600.0 4.32 0.0
3 2000.0 4.32 0.25
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.5
3 6300.0 4.32 -0.5
3 8000.0 4.32 -0.5
3 10000.0 4.32 -0.75
3 12000.0 4.32 -0.75
3 16000.0 4.32 -0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
