- Quality of the measurement data is low.
- Origin of the data is Turbosound.
- Format of the data is a GLL file .
-
Sensitivity:
- Company: 97 dB
- Measured: 106.9 dB (avg. 300Hz-3kHz for 2.83V estimated at 1m).
- Measured: 86.9 dB computed at the measurement distance (10.0m) over the same frequency range.
- -3dB (resp. -6db) point v.s. reference is at 46.2Hz (resp. 40.0Hz).
- Reference level is normalised to -5.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 5.8dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score does not make sense for toursound speakers. Don't give too much credits to the value.
- Tonality (Preference) Score is 2.49
and would be 4.27 with a
perfect subwoofer.
- Details: NBD: ON 0.637, LW 0.669, SP 0.732, PIR 0.693; SM: SP0.089, PIR0.107; LFQ 2.109, LFX 37Hz
- Tonality (Preference) Score is 4.03
with an EQ and would be 5.87 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.477, LW 0.508, SP 0.53, PIR 0.501; SM: SP0.429, PIR0.376; LFQ 2.109, LFX 38Hz
- Note: TODO: add exact config.

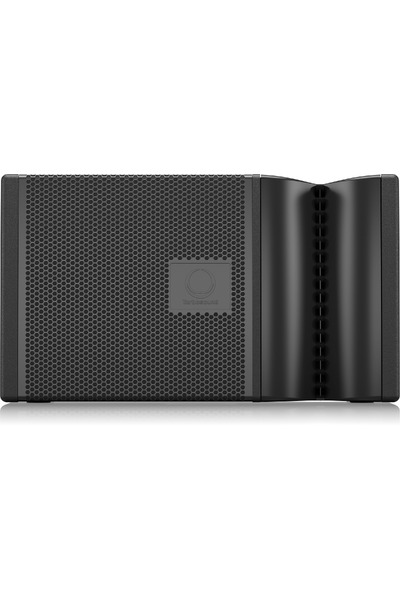

Turbosound TBV123 is a passive toursound that cost around 2600 USD each.
Vendor specifications
- Dispersion: 100° horizontal and 15° vertical.
- Impedance 6 Ohm
- SPL
- continuous: 125 dB
- peak: 131 dB
- Size
- Width 598mm
- Height 344mm
- Depth 399mm
- Weight 22.0kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -8.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 46.0 | 1.27 | 2.99 |
| PK | 99.0 | 1.3 | -3.0 |
| PK | 181.0 | 0.48 | -2.99 |
| PK | 299.0 | 2.98 | 3.0 |
| PK | 903.0 | 2.82 | 2.99 |
| PK | 1348.0 | 1.24 | 2.98 |
| PK | 2226.0 | 3.0 | 2.76 |
| PK | 7930.0 | 0.25 | 3.0 |
| LS | 16000.0 | 1.07 | 2.61 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.25 |
| PK | 40.0 | 2.14 | 0.25 |
| PK | 63.0 | 2.14 | 0.25 |
| PK | 100.0 | 2.14 | -0.25 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | 0.25 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 1.0 |
| PK | 1600.0 | 2.14 | 1.0 |
| PK | 2500.0 | 2.14 | 1.25 |
| PK | 4000.0 | 2.14 | 1.25 |
| PK | 6300.0 | 2.14 | 1.25 |
| PK | 10000.0 | 2.14 | 1.5 |
| PK | 16000.0 | 2.14 | 1.5 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -2.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.25 |
| PK | 31.0 | 4.32 | 0.25 |
| PK | 40.0 | 4.32 | 0.25 |
| PK | 50.0 | 4.32 | 0.75 |
| PK | 63.0 | 4.32 | 0.25 |
| PK | 80.0 | 4.32 | -0.25 |
| PK | 100.0 | 4.32 | -0.25 |
| PK | 125.0 | 4.32 | -0.25 |
| PK | 160.0 | 4.32 | -0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.25 |
| PK | 315.0 | 4.32 | 0.5 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.25 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.75 |
| PK | 1000.0 | 4.32 | 1.0 |
| PK | 1250.0 | 4.32 | 1.0 |
| PK | 1600.0 | 4.32 | 1.0 |
| PK | 2000.0 | 4.32 | 1.0 |
| PK | 2500.0 | 4.32 | 1.25 |
| PK | 3150.0 | 4.32 | 1.0 |
| PK | 4000.0 | 4.32 | 1.25 |
| PK | 5000.0 | 4.32 | 1.0 |
| PK | 6300.0 | 4.32 | 1.25 |
| PK | 8000.0 | 4.32 | 1.5 |
| PK | 10000.0 | 4.32 | 1.5 |
| PK | 12000.0 | 4.32 | 1.25 |
| PK | 16000.0 | 4.32 | 1.5 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
This EQ is designed for a 31 bands graphical EQ.
