What we know about the measurement:

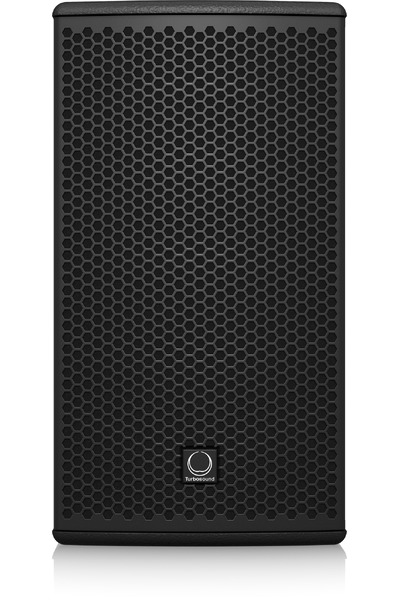

Turbosound NuQ62 is a passive liveportable that cost around 329 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Turbosound.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 73.0Hz (resp. 63.0Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.9dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.7 and would be 6.45 with a perfect subwoofer.
      • Details: NBD: ON 0.428, LW 0.414, SP 0.505, PIR 0.435; SM: SP0.743, PIR0.491; LFQ 0.394, LFX 63Hz
    • Tonality (Preference) Score is 5.69 with an EQ and would be 8.35 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.25, LW 0.222, SP 0.406, PIR 0.282; SM: SP0.961, PIR0.923; LFQ 0.394, LFX 60Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • Sensitivity 88 dB
    • Impedance 16 Ohm
    • SPL
      • peak: 116 dB
    • Size
      • Width 190mm
      • Height 350mm
      • Depth 210mm
    • Weight 6.3kg
Turbosound NuQ62
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
PK 73.0 1.3 2.94
PK 237.0 2.96 1.62
PK 280.0 0.28 -2.99
PK 691.0 1.34 2.68
PK 1180.0 2.18 1.56
PK 2545.0 1.87 2.98
PK 4645.0 2.97 -1.96
PK 7173.0 2.77 -2.51
PK 11454.0 1.26 -2.94
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Turbosound NuQ62
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 -0.25
PK 160.0 2.14 -0.75
PK 250.0 2.14 -0.25
PK 400.0 2.14 -0.5
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.5
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.75
PK 10000.0 2.14 -0.75
PK 16000.0 2.14 -0.25
Download
This EQ is designed for a 15 bands graphical EQ.
Turbosound NuQ62
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.25
PK 100.0 4.32 -0.25
PK 125.0 4.32 -0.5
PK 160.0 4.32 -0.5
PK 200.0 4.32 -0.5
PK 250.0 4.32 -0.25
PK 315.0 4.32 -0.5
PK 400.0 4.32 -0.25
PK 500.0 4.32 -0.25
PK 630.0 4.32 0.0
PK 800.0 4.32 0.25
PK 1000.0 4.32 0.25
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.25
PK 2000.0 4.32 0.5
PK 2500.0 4.32 0.75
PK 3150.0 4.32 0.5
PK 4000.0 4.32 0.0
PK 5000.0 4.32 0.0
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 -0.5
PK 12000.0 4.32 -0.5
PK 16000.0 4.32 0.25
PK 20000.0 4.32 0.0
Download
This EQ is designed for a 31 bands graphical EQ.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
Turbosound NuQ62: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
