What we know about the measurement:

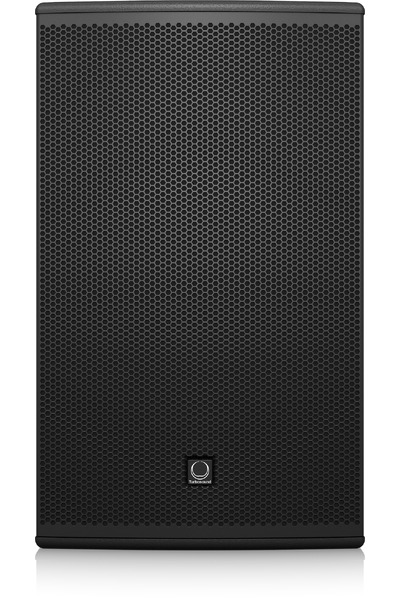

Turbosound NuQ122 is a passive liveportable that cost around 800 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Turbosound.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 101.4dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 81.4dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 71.0Hz (resp. 60.0Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.39 and would be 6.2 with a perfect subwoofer.
      • Details: NBD: ON 0.414, LW 0.543, SP 0.715, PIR 0.615; SM: SP0.701, PIR0.598; LFQ 2.433, LFX 64Hz
    • Tonality (Preference) Score is 5.59 with an EQ and would be 8.07 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.207, LW 0.313, SP 0.47, PIR 0.348; SM: SP0.87, PIR0.841; LFQ 2.433, LFX 54Hz
  • Vendor specifications:
    • Dispersion: 70° horizontal and 70° vertical.
    • Sensitivity 96 dB
    • Impedance 6 Ohm
    • SPL
      • peak: 128 dB
    • Size
      • Width 374mm
      • Height 655mm
      • Depth 340 mm)
    • Weight 19.6 kg
Turbosound NuQ122
AutomaticEQ (IIR)
Set preamp gain to: -2.4dB.
Type Freq Q Gain
3 56.0 1.48 2.99
3 155.0 0.93 -3.58
3 252.0 2.72 2.59
3 356.0 1.83 -1.79
3 739.0 2.99 2.39
3 6585.0 1.83 -3.68
3 12736.0 0.9 -3.17
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Turbosound NuQ122 filters_auto_eq

AutomaticEQ

Turbosound NuQ122 filters_eq_full

Target v.s. EQ

Turbosound NuQ122
Graphic EQ 15 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 -0.5
3 250.0 2.14 0.25
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.75
3 4000.0 2.14 0.5
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

Turbosound NuQ122
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 -0.25
3 125.0 4.32 -0.5
3 160.0 4.32 -0.5
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 -0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.0
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.5
3 4000.0 4.32 0.5
3 5000.0 4.32 0.25
3 6300.0 4.32 -0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
