What we know about the measurement:

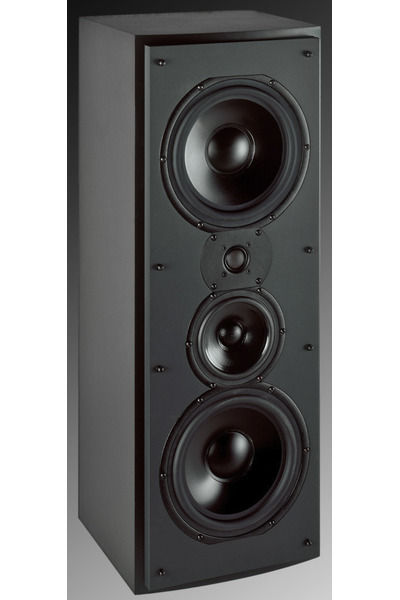

Triad In-Room Gold LCR is a passive cinema that cost around 6600 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 88.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 51.3Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.78 and would be 6.15 with a perfect subwoofer.
      • Details: NBD: ON 0.567, LW 0.497, SP 0.493, PIR 0.462; SM: SP0.692, PIR0.544; LFQ 1.765, LFX 51Hz
    • Tonality (Preference) Score is 5.63 with an EQ and would be 7.7 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.49, LW 0.397, SP 0.318, PIR 0.304; SM: SP0.955, PIR0.928; LFQ 1.539, LFX 43Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
Triad In-Room Gold LCR
AutomaticEQ (IIR)
Set preamp gain to: -2.5dB.
Type Freq Q Gain
5 58.0 0.86 2.09
3 229.0 1.61 1.9
3 289.0 2.97 -1.28
3 404.0 2.97 -1.48
3 998.0 1.97 2.91
3 1491.0 2.55 -0.54
3 1822.0 2.19 -2.02
3 4492.0 1.45 -2.69
3 14965.0 0.62 -0.23
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Triad In-Room Gold LCR filters_auto_eq

AutomaticEQ

Triad In-Room Gold LCR filters_eq_full

Target v.s. EQ

Triad In-Room Gold LCR
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 0.25
3 250.0 2.14 0.25
3 400.0 2.14 -0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.5
3 1600.0 2.14 -0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 -0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.0
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Triad In-Room Gold LCR
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.25
3 80.0 4.32 -0.25
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.25
3 1600.0 4.32 -0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.0
3 4000.0 4.32 -0.25
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 0.0
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Triad In-Room Gold LCR: comparison between EQs
Triad In-Room Gold LCR

Comparison betweens various EQs

Triad In-Room Gold LCR

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
