- Quality of the measurement data is high.
- Origin of the data is ErinsAudioCorner.
- Format of the data is generated by a Klippel NFS .
- -3dB (resp. -6db) point v.s. reference is at 43.9Hz (resp. 39.6Hz).
- Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.8dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.39
and would be 7.27 with a
perfect subwoofer.
- Details: NBD: ON 0.437, LW 0.396, SP 0.407, PIR 0.368; SM: SP0.918, PIR0.765; LFQ 0.907, LFX 39Hz
- Tonality (Preference) Score is 6.47
with an EQ and would be 8.13 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.352, LW 0.322, SP 0.319, PIR 0.272; SM: SP0.957, PIR0.92; LFQ 0.907, LFX 35Hz
- Tonality (Preference) Score is 5.39
and would be 7.27 with a
perfect subwoofer.
- Link to original Review: eac review. Links to other reviews: yt review .
- Note: Treble was set at -2dB..

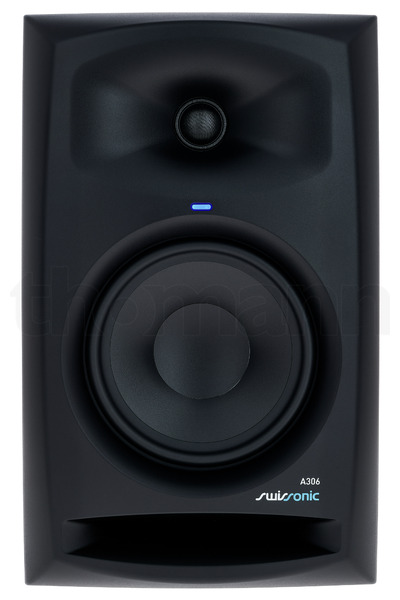

Thomann Swissonic A306 is an active bookshelves that cost around 250 USD for a pair.
Vendor specifications
- Size
- Width 224mm
- Height 361mm
- Depth 282mm
- Weight 6.17kg
Directivity (-6dB)
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 34.0 | 2.03 | 3.0 |
| PK | 83.0 | 1.69 | -2.28 |
| PK | 522.0 | 1.16 | 2.22 |
| PK | 910.0 | 1.73 | -2.3 |
| PK | 3779.0 | 1.02 | -0.15 |
| PK | 5165.0 | 1.06 | -1.34 |
| PK | 12736.0 | 3.0 | -1.77 |
| Download | |||
