What we know about the measurement:

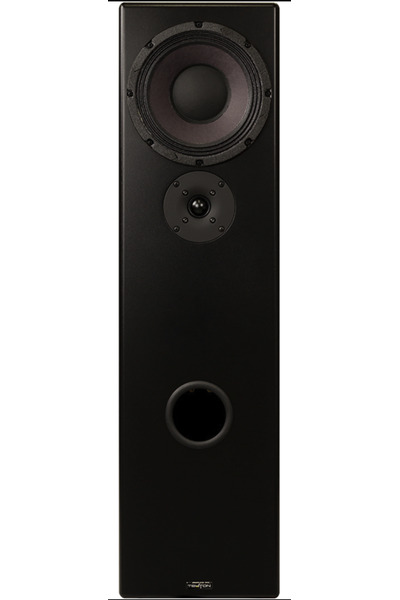

Tekton M-Lore is a passive floorstanders that cost around 750 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 60.1Hz (resp. 46.9Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.8dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.52 and would be 5.66 with a perfect subwoofer.
      • Details: NBD: ON 0.678, LW 0.675, SP 0.561, PIR 0.585; SM: SP0.802, PIR0.611; LFQ 1.059, LFX 45Hz
    • Tonality (Preference) Score is 5.71 with an EQ and would be 7.45 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.478, LW 0.441, SP 0.448, PIR 0.389; SM: SP0.941, PIR0.915; LFQ 1.059, LFX 36Hz
  • Link to Original review.
  • Vendor specifications:
    • Sensitivity 95 dB
    • Impedance 8 Ohm
    • Size
      • Width 231mm
      • Height 863mm
      • Depth 254mm
    • Weight 20kg
Tekton M-Lore
AutomaticEQ (IIR)
Set preamp gain to: -3.8dB.
Type Freq Q Gain
PK 36.0 2.6 2.99
PK 60.0 1.05 1.83
PK 178.0 2.98 3.0
PK 310.0 2.21 1.15
PK 689.0 2.91 -2.74
PK 4194.0 3.0 2.99
PK 8110.0 1.92 -1.88
Download
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
Tekton M-Lore
AutomaticEQ LW (IIR)
Set preamp gain to: -5.4dB.
Type Freq Q Gain
PK 49.0 2.04 5.36
PK 178.0 3.0 2.91
PK 714.0 2.52 -2.92
PK 942.0 2.94 5.98
PK 976.0 1.45 -4.51
PK 1010.0 0.25 0.99
PK 4989.0 2.35 3.09
Download
This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
Tekton M-Lore
AutomaticEQ Score (IIR)
Set preamp gain to: -6.0dB.
Type Freq Q Gain
PK 33.0 0.98 6.0
PK 178.0 2.97 3.18
PK 689.0 2.97 -3.01
PK 2168.0 2.22 -1.92
PK 4194.0 3.0 2.21
PK 4989.0 0.25 1.69
PK 7834.0 1.45 -3.23
Download
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
Tekton M-Lore: comparison between EQs
AutomaticEQ
Target v.s. EQ
Comparison betweens various EQs
;
