What we know about the measurement:

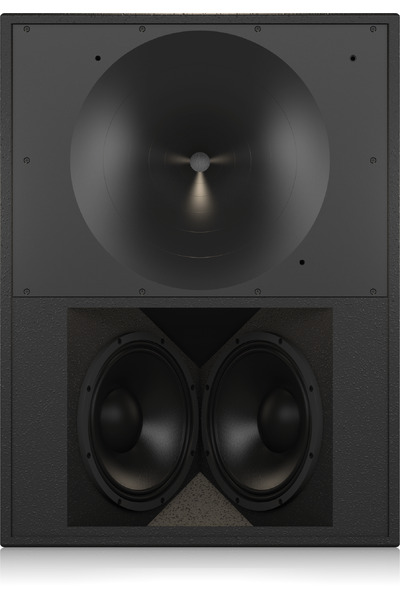

Tannoy VQ100 is a passive cinema that cost around 2500 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Tannoy.
  • Format of the data is a GLL file .
  • Sensitivity: 129.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 109.1dB.
  • -3dB (resp. -6db) point v.s. reference is at 136.0Hz (resp. 112.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.53 and would be 3.54 with a perfect subwoofer.
      • Details: NBD: ON 0.757, LW 0.696, SP 0.831, PIR 0.766; SM: SP0.334, PIR0.018; LFQ 3.38, LFX 127Hz
    • Tonality (Preference) Score is 2.96 with an EQ and would be 6.43 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.566, LW 0.478, SP 0.574, PIR 0.528; SM: SP0.85, PIR0.749; LFQ 3.091, LFX 92Hz
  • Vendor specifications:
    • Impedance 8 Ohm
    • Size
      • Width 694mm
      • Height 925mm
      • Depth 515 mm)
Tannoy VQ100
AutomaticEQ (IIR)
Set preamp gain to: -4.7dB.
Type Freq Q Gain
3 98.0 2.71 3.0
3 227.0 1.11 -3.56
3 235.0 0.25 3.0
3 765.0 3.0 -3.48
3 1333.0 2.59 -2.16
3 3068.0 3.0 -2.28
3 7566.0 0.81 -4.5
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Tannoy VQ100 filters_auto_eq
