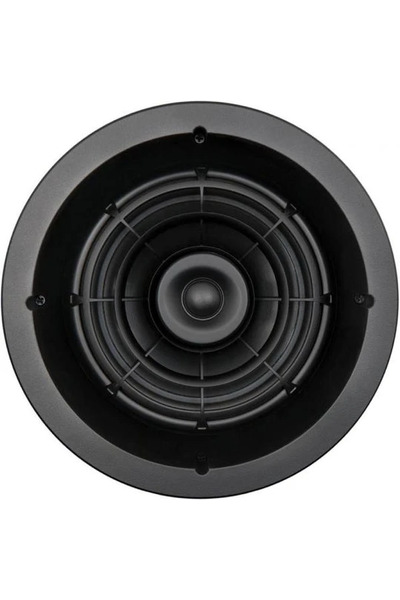

What we know about the measurement:
- Quality of the measurement data is
low.
-
Origin of the data is Misc.
-
Format of the data is
a scanned image
.
-
Sensitivity: 82.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 60.5Hz (resp. 44.9Hz).
-
Reference level is normalised to 0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 14.2dB over the same frequency range.
- Tonality (Preference) Score
- Note: The tonality (Preference) score
does not make sense for inwall speakers. Don't give too much credits
to the value.
- Tonality (Preference) Score is -1.75
and would be 0.3 with a
perfect subwoofer.
- Details:
NBD: ON 1.365,
LW 1.405, SP
1.405, PIR
1.354; SM:
SP0.099,
PIR0.031; LFQ
0.403, LFX 43Hz
- Tonality (Preference) Score is 3.64
with an EQ and would be 4.29 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.86,
LW 0.914, SP
0.902, PIR
0.849; SM:
SP0.648,
PIR0.558; LFQ 0.465, LFX 20Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
139.0 |
2.96 |
-3.23 |
| PK |
356.0 |
2.8 |
2.47 |
| PK |
439.0 |
3.0 |
3.0 |
| PK |
765.0 |
2.44 |
-9.0 |
| PK |
2406.0 |
1.0 |
-4.08 |
| PK |
12736.0 |
0.44 |
-5.58 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -1.3dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.25 |
| PK |
40.0 |
2.14 |
0.25 |
| PK |
63.0 |
2.14 |
0.0 |
| PK |
100.0 |
2.14 |
-0.5 |
| PK |
160.0 |
2.14 |
-0.25 |
| PK |
250.0 |
2.14 |
0.0 |
| PK |
400.0 |
2.14 |
1.5 |
| PK |
630.0 |
2.14 |
-0.75 |
| PK |
1000.0 |
2.14 |
0.0 |
| PK |
1600.0 |
2.14 |
0.5 |
| PK |
2500.0 |
2.14 |
0.0 |
| PK |
4000.0 |
2.14 |
0.25 |
| PK |
6300.0 |
2.14 |
0.75 |
| PK |
10000.0 |
2.14 |
0.25 |
| PK |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.9dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.25 |
| PK |
31.0 |
4.32 |
0.25 |
| PK |
40.0 |
4.32 |
0.25 |
| PK |
50.0 |
4.32 |
0.25 |
| PK |
63.0 |
4.32 |
0.0 |
| PK |
80.0 |
4.32 |
-0.5 |
| PK |
100.0 |
4.32 |
-0.5 |
| PK |
125.0 |
4.32 |
-0.5 |
| PK |
160.0 |
4.32 |
-0.5 |
| PK |
200.0 |
4.32 |
-0.25 |
| PK |
250.0 |
4.32 |
-0.25 |
| PK |
315.0 |
4.32 |
0.25 |
| PK |
400.0 |
4.32 |
1.0 |
| PK |
500.0 |
4.32 |
-0.25 |
| PK |
630.0 |
4.32 |
-0.75 |
| PK |
800.0 |
4.32 |
-1.25 |
| PK |
1000.0 |
4.32 |
-0.5 |
| PK |
1250.0 |
4.32 |
-0.5 |
| PK |
1600.0 |
4.32 |
0.0 |
| PK |
2000.0 |
4.32 |
-0.75 |
| PK |
2500.0 |
4.32 |
-0.5 |
| PK |
3150.0 |
4.32 |
-0.25 |
| PK |
4000.0 |
4.32 |
-0.25 |
| PK |
5000.0 |
4.32 |
-0.25 |
| PK |
6300.0 |
4.32 |
-0.25 |
| PK |
8000.0 |
4.32 |
-0.25 |
| PK |
10000.0 |
4.32 |
-0.5 |
| PK |
12000.0 |
4.32 |
-0.5 |
| PK |
16000.0 |
4.32 |
-0.5 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
