What we know about the measurement:

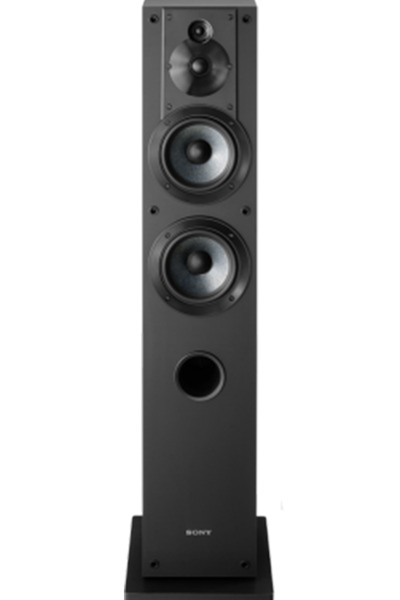

Sony SS-CS3 is a passive floorstanders that cost around 450 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 88.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 71.8Hz (resp. 60.1Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.2dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.44 and would be 6.98 with a perfect subwoofer.
      • Details: NBD: ON 0.548, LW 0.475, SP 0.461, PIR 0.446; SM: SP0.932, PIR0.862; LFQ 0.964, LFX 56Hz
    • Tonality (Preference) Score is 5.99 with an EQ and would be 7.76 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.446, LW 0.377, SP 0.371, PIR 0.322; SM: SP0.956, PIR0.928; LFQ 0.826, LFX 37Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Impedance 6 Ohm
    • Size
      • Width 230mm
      • Height 922mm
      • Depth 260 mm)
    • Weight 11.5 kg
Sony SS-CS3
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 37.0 0.48 3.0
3 109.0 1.99 -2.33
3 942.0 2.97 2.95
3 1121.0 1.61 -3.34
3 2491.0 1.64 1.93
3 6818.0 1.05 -3.2
3 7566.0 2.92 2.87
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sony SS-CS3 filters_auto_eq

AutomaticEQ

Sony SS-CS3 filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
