What we know about the measurement:

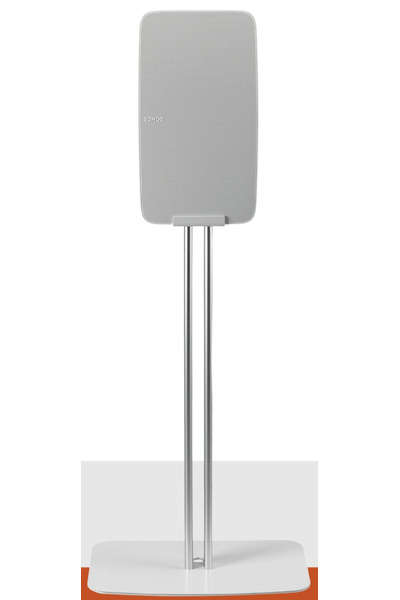

Sonos Five is an active omnidirectional that cost around 650 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 38.5Hz (resp. 30.0Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-10.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for omnidirectional speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 2.88 and would be 4.52 with a perfect subwoofer.
      • Details: NBD: ON 0.889, LW 0.495, SP 0.454, PIR 0.45; SM: SP0.357, PIR0.171; LFQ 0.566, LFX 34Hz
    • Tonality (Preference) Score is 5.56 with an EQ and would be 6.81 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.795, LW 0.398, SP 0.311, PIR 0.316; SM: SP0.887, PIR0.885; LFQ 0.521, LFX 28Hz
  • Horizontal measurement
  • Link to original Review: asr review. .
  • Note: Since the speaker is almost omnidirectional, it is unclear if the automatic EQ is helping or not. Do not blindly use it and do some listenting.
  • Vendor specifications:
    • Size
      • Width 364mm
      • Height 203mm
      • Depth 154 mm)
    • Weight 6.3 kg
Sonos Five
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
3 27.0 1.19 2.97
3 77.0 1.4 -3.65
3 184.0 2.97 -2.68
3 270.0 2.98 1.02
3 2168.0 0.77 -1.11
3 7059.0 1.34 -2.36
3 12736.0 1.14 -5.06
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sonos Five filters_auto_eq

AutomaticEQ

Sonos Five filters_eq_full

Target v.s. EQ

Sonos Five
AutomaticEQ LW (IIR)
Set preamp gain to: -0.0dB.
Type Freq Q Gain
3 83.0 1.14 -3.31
3 184.0 3.0 -3.03
3 1333.0 1.73 -2.3
3 3779.0 0.86 -3.76
3 4342.0 3.0 2.98
3 8110.0 0.76 -1.4
3 12736.0 2.73 -2.27
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

Sonos Five: comparison between EQs
Sonos Five

Comparison betweens various EQs

Sonos Five

Improvements made by EQ
