What we know about the measurement:

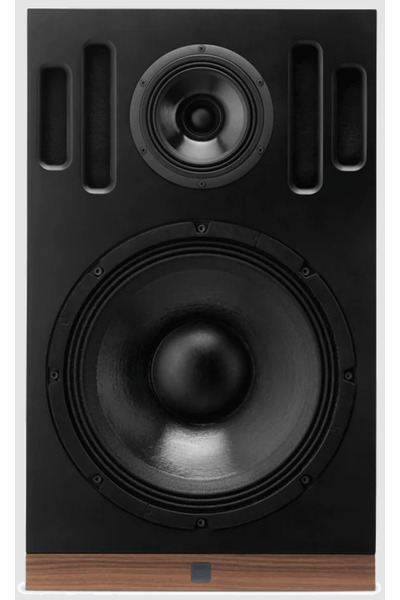

Sigberg Audio Manta is an active bookshelves that cost around 5500 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Sigberg Audio.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 97.4Hz (resp. 78.4Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.4 and would be 6.83 with a perfect subwoofer.
      • Details: NBD: ON 0.486, LW 0.386, SP 0.404, PIR 0.389; SM: SP0.793, PIR0.659; LFQ 3.14, LFX 90Hz
    • Tonality (Preference) Score is 5.16 with an EQ and would be 8.19 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.319, LW 0.259, SP 0.271, PIR 0.236; SM: SP0.88, PIR0.868; LFQ 3.14, LFX 73Hz
  • Link to original Review: asr review. Links to other reviews: sigbergaudio review , hifipig review .
  • Vendor specifications:
    • SPL
      • peak: 122 dB
    • Size
      • Width 360mm
      • Height 600mm
      • Depth 350 mm)
    • Weight 25 kg
Sigberg Audio Manta
AutomaticEQ (IIR)
Set preamp gain to: -2.7dB.
Type Freq Q Gain
3 80.0 0.8 2.99
3 149.0 2.27 -1.69
3 227.0 1.34 -1.74
3 540.0 2.51 1.53
3 1333.0 2.21 2.99
3 3068.0 2.99 1.89
3 3177.0 0.29 -2.25
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.
