What we know about the measurement:

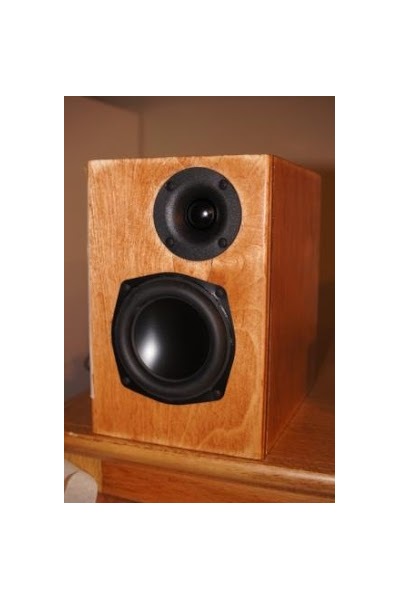

Sehlin Helium DIY is a passive bookshelves that cost around 140 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 78.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 79.1Hz (resp. 67.4Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.12 and would be 6.0 with a perfect subwoofer.
      • Details: NBD: ON 0.599, LW 0.597, SP 0.644, PIR 0.619; SM: SP0.831, PIR0.716; LFQ 0.39, LFX 67Hz
    • Tonality (Preference) Score is 5.03 with an EQ and would be 7.69 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.502, LW 0.413, SP 0.382, PIR 0.303; SM: SP0.943, PIR0.934; LFQ 0.39, LFX 60Hz
  • Link to Original review.
Sehlin Helium DIY
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
5 89.0 0.97 2.97
3 280.0 0.53 -2.96
3 418.0 1.32 2.9
3 933.0 2.69 2.98
3 1541.0 2.88 -1.9
3 3216.0 1.72 -2.87
3 5677.0 2.74 2.8
3 9064.0 1.84 -2.37
3 14473.0 0.74 0.63
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sehlin Helium DIY filters_auto_eq

AutomaticEQ

Sehlin Helium DIY filters_eq_full

Target v.s. EQ

Sehlin Helium DIY
flipflop@ASR (IIR)
Set preamp gain to: -5.7dB.
Type Freq Q Gain
3 421.0 5.0 3.0
3 459.0 15.0 -0.6
3 529.0 1.056 -3.2
3 666.0 1.0 4.5
3 810.0 5.0 -16.7
3 829.0 5.0 18.0
3 981.0 5.0 1.9
3 1234.0 1.0 -1.3
3 1332.0 5.0 18.0
3 1355.0 5.0 -17.2
3 1865.0 25.0 -1.8
3 2077.0 5.0 1.2
3 2387.0 5.0 -0.9
3 2935.0 5.0 -1.4
3 3900.0 3.0 -0.5
3 5010.0 10.0 1.5
3 5850.0 4.0 2.6
3 7000.0 2.5 1.7
3 10500.0 2.8 0.4
3 14300.0 1.6 2.7
Download

These EQ is designed by ASR member flipflop.

Sehlin Helium DIY
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.0
3 160.0 2.14 -0.5
3 250.0 2.14 -0.5
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 -0.25
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 -0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Sehlin Helium DIY
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.25
3 100.0 4.32 0.0
3 125.0 4.32 -0.25
3 160.0 4.32 -0.5
3 200.0 4.32 -0.5
3 250.0 4.32 -0.5
3 315.0 4.32 -0.25
3 400.0 4.32 0.0
3 500.0 4.32 -0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 -0.25
3 2000.0 4.32 -0.25
3 2500.0 4.32 -0.25
3 3150.0 4.32 -0.5
3 4000.0 4.32 -0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Sehlin Helium DIY: comparison between EQs
Sehlin Helium DIY

Comparison betweens various EQs

Sehlin Helium DIY

Improvements made by EQ
