What we know about the measurement:

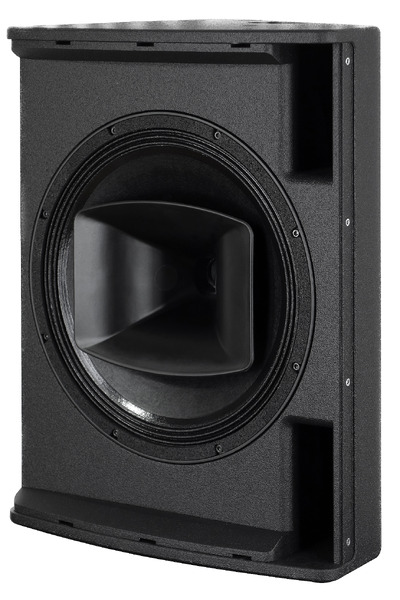

Seeburg X2 is a passive liveportable that cost around 2200 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is Seeburg.
  • Format of the data is a GLL file .
  • Sensitivity: 107.1dB (avg. 100Hz-1kHz for 2.83V estimated at 1m) . Sensitivity computed at the measurement distance (10m) over the same frequency range: 87.1dB.
  • -3dB (resp. -6db) point v.s. reference is at 90.0Hz (resp. 80.0Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.44 and would be 6.7 with a perfect subwoofer.
      • Details: NBD: ON 0.461, LW 0.466, SP 0.519, PIR 0.462; SM: SP0.839, PIR0.669; LFQ 1.742, LFX 82Hz
    • Tonality (Preference) Score is 4.74 with an EQ and would be 7.88 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.375, LW 0.326, SP 0.421, PIR 0.346; SM: SP0.96, PIR0.932; LFQ 1.742, LFX 77Hz
Seeburg X2
AutomaticEQ (IIR)
Set preamp gain to: -1.5dB.
Type Freq Q Gain
5 175.0 1.22 2.88
3 604.0 1.18 2.81
3 790.0 2.66 -1.67
3 998.0 1.53 1.97
3 1491.0 2.7 0.89
3 3801.0 1.35 1.39
3 4966.0 2.8 -2.59
3 11454.0 2.96 -2.44
5 13537.0 0.61 -1.4
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Seeburg X2 filters_auto_eq

AutomaticEQ

Seeburg X2 filters_eq_full

Target v.s. EQ

Seeburg X2
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.25
3 160.0 2.14 0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.5
3 1600.0 2.14 0.25
3 2500.0 2.14 0.0
3 4000.0 2.14 0.25
3 6300.0 2.14 -0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Seeburg X2
Graphic EQ 31 bands
Set preamp gain to: -1.2dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.75
3 100.0 4.32 0.25
3 125.0 4.32 0.25
3 160.0 4.32 0.25
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.5
3 1250.0 4.32 0.5
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 -0.5
3 6300.0 4.32 0.0
3 8000.0 4.32 0.0
3 10000.0 4.32 0.0
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Seeburg X2: comparison between EQs
Seeburg X2

Comparison betweens various EQs

Seeburg X2

Improvements made by EQ
