We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

Revel W228Be is a passive inwall that cost around 3500 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 108.4Hz (resp. 74.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 4.4dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 1.34 and would be 5.18 with a perfect subwoofer.
      • Details: NBD: ON 0.694, LW 0.479, SP 0.382, PIR 0.38; SM: SP0.363, PIR0.16; LFQ 5.288, LFX 112Hz
    • Tonality (Preference) Score is -0.96 with an EQ and would be 4.75 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.71, LW 0.481, SP 0.432, PIR 0.416; SM: SP0.02, PIR0.038; LFQ 10.0, LFX 307Hz
  • Link to original Review: asr review. Links to other reviews: avs review .

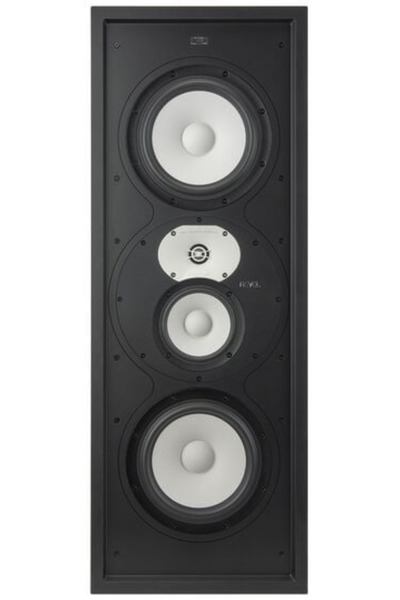

Revel W228Be
AutomaticEQ LW (IIR)
Set preamp gain to: -2.2dB.
Type Freq Q Gain
PK 41.0 2.99 2.27
PK 211.0 1.14 -2.15
PK 2245.0 2.39 -1.24
PK 9989.0 0.75 1.66
Download
This EQ optimise for a flat listening window and is a good start for near field listening like on your desk.
Improvement made by adding the above EQ
EQ
AutoEQ
Target v.s. EQ
Target v.s. EQ
Histogram of errors
On Axis (fullrange)
Listening Window (fullrange)
Predicted In-Room Response (fullrange)
;
