What we know about the measurement:

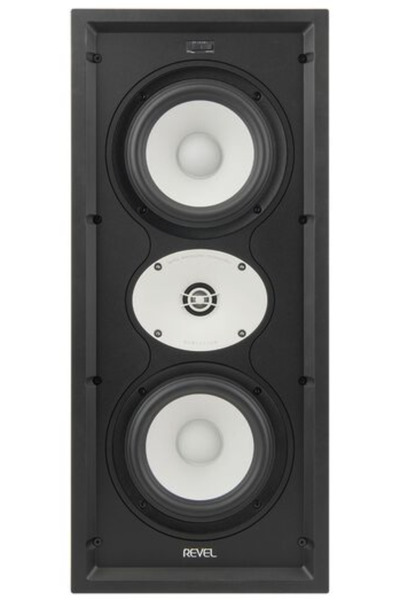

Revel W226Be is a passive inwall that cost around 2250 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Revel.
  • Format of the data is a scanned image .
  • Sensitivity: 89.5dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 48.1Hz (resp. 43.7Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.0dB over the same frequency range.
  • Tonality (Preference) Score
    • Note: The tonality (Preference) score does not make sense for inwall speakers. Don't give too much credits to the value.
    • Tonality (Preference) Score is 5.16 and would be 7.22 with a perfect subwoofer.
      • Details: NBD: ON 0.443, LW 0.278, SP 0.321, PIR 0.28; SM: SP0.789, PIR0.64; LFQ 0.259, LFX 43Hz
  • Link to Original review.
  • Vendor specifications:
    • Sensitivity 90 dB
    • Impedance 4 Ohm
    • SPL
      • peak: 110 dB
    • Size
      • Width 260mm
      • Height 582mm
      • Depth 97 mm)
    • Weight 7.1 kg
CEA2034
On Axis
Estimated In-Room Response
;
