- Quality of the measurement data is medium.
- Origin of the data is Revel.
- Format of the data is a scanned image .
-
Sensitivity:
- Measured: 88.6 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 63.9Hz (resp. 44.0Hz).
- Reference level is normalised to 0.4dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 2.6dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.23
and would be 7.63 with a
perfect subwoofer.
- Details: NBD: ON 0.529, LW 0.226, SP 0.253, PIR 0.202; SM: SP0.877, PIR0.809; LFQ 2.343, LFX 52Hz
- Tonality (Preference) Score is 6.49
with an EQ and would be 8.38 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.429, LW 0.184, SP 0.24, PIR 0.156; SM: SP0.959, PIR0.966; LFQ 2.192, LFX 39Hz
- Tonality (Preference) Score is 5.23
and would be 7.63 with a
perfect subwoofer.
- Link to Original review.

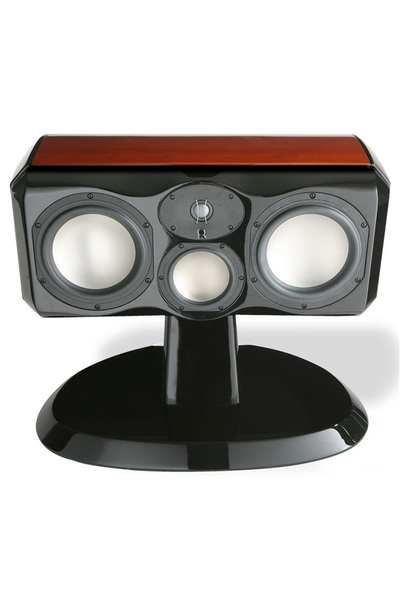

Revel Ultima2 Voice2 is a passive center that cost around 8000 USD
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -3.0dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 40.0 | 0.68 | 3.0 |
| PK | 109.0 | 2.74 | -1.2 |
| PK | 219.0 | 2.37 | -1.54 |
| PK | 2023.0 | 2.94 | 2.63 |
| PK | 2964.0 | 0.29 | -1.52 |
| PK | 5934.0 | 0.62 | -0.56 |
| PK | 16239.0 | 1.15 | -1.59 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -1.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.75 |
| PK | 40.0 | 2.14 | 0.75 |
| PK | 63.0 | 2.14 | 0.75 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | 0.0 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.25 |
| PK | 630.0 | 2.14 | 0.0 |
| PK | 1000.0 | 2.14 | 0.0 |
| PK | 1600.0 | 2.14 | 0.0 |
| PK | 2500.0 | 2.14 | 0.0 |
| PK | 4000.0 | 2.14 | -0.25 |
| PK | 6300.0 | 2.14 | -0.25 |
| PK | 10000.0 | 2.14 | -0.25 |
| PK | 16000.0 | 2.14 | -0.25 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -1.1dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.75 |
| PK | 31.0 | 4.32 | 0.75 |
| PK | 40.0 | 4.32 | 0.75 |
| PK | 50.0 | 4.32 | 0.75 |
| PK | 63.0 | 4.32 | 0.75 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | 0.0 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.25 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.0 |
| PK | 800.0 | 4.32 | 0.0 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.0 |
| PK | 1600.0 | 4.32 | 0.25 |
| PK | 2000.0 | 4.32 | 0.5 |
| PK | 2500.0 | 4.32 | 0.0 |
| PK | 3150.0 | 4.32 | 0.0 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.25 |
| PK | 6300.0 | 4.32 | -0.25 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | -0.25 |
| PK | 12000.0 | 4.32 | 0.0 |
| PK | 16000.0 | 4.32 | -0.25 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
