What we know about the measurement:

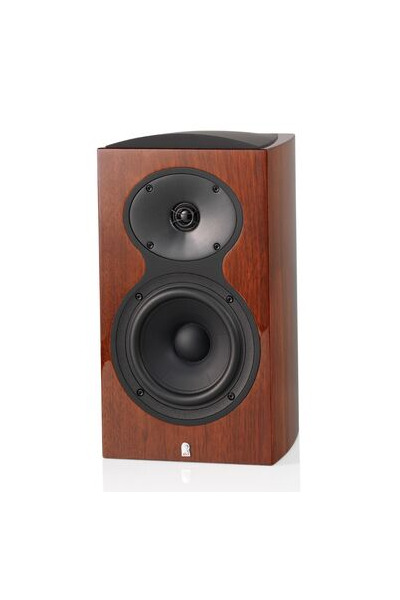

Revel M106 is a passive bookshelves that cost around 4000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ASR.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 85.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 63.0Hz (resp. 52.7Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 70.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.73 and would be 7.98 with a perfect subwoofer.
      • Details: NBD: ON 0.385, LW 0.289, SP 0.32, PIR 0.273; SM: SP0.944, PIR0.897; LFQ 0.532, LFX 48Hz
    • Tonality (Preference) Score is 6.47 with an EQ and would be 8.48 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.297, LW 0.206, SP 0.317, PIR 0.232; SM: SP0.963, PIR0.964; LFQ 0.64, LFX 42Hz
  • Link to Original review.
Revel M106
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 46.0 1.89 2.91
3 321.0 1.42 1.42
3 910.0 1.61 -0.89
3 2324.0 2.93 0.76
3 4818.0 1.94 -1.67
3 7566.0 2.97 1.14
3 11476.0 2.87 -0.72
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Revel M106 filters_auto_eq

AutomaticEQ

Revel M106 filters_eq_full

Target v.s. EQ

Revel M106
flipflop@ASR (IIR)
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 357.0 20.0 0.4
3 450.0 7.0 -0.6
3 608.0 5.5 -0.7
3 693.0 20.0 0.6
3 745.0 4.0 -1.4
3 990.0 4.0 -1.4
3 1265.0 8.0 -0.9
3 1445.0 20.0 0.3
3 1555.0 15.0 -0.6
3 1852.0 11.0 -0.8
3 2110.0 18.0 -0.4
3 2270.0 17.0 0.8
3 2545.0 20.0 0.8
3 2920.0 3.8 -1.7
3 5020.0 1.6 -1.9
3 6750.0 10.0 -0.4
3 7750.0 9.0 0.7
3 8680.0 15.0 -0.3
3 11118.0 5.0 -1.0
3 12900.0 4.0 -0.6
Download

These EQ is designed by ASR member flipflop.

Revel M106
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 -0.25
3 250.0 2.14 0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 0.25
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Revel M106
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 -0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 -0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Revel M106: comparison between EQs
Revel M106

Comparison betweens various EQs

Revel M106

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
