We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).

What we know about the measurement:

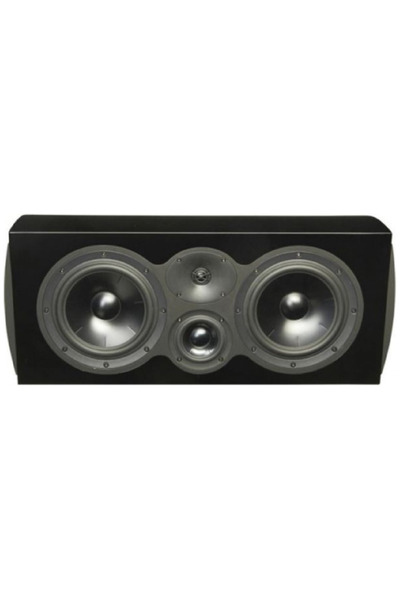

Revel C208 is a passive center that cost around 2000 USD

  • Quality of the measurement data is low.
  • Origin of the data is Revel.
  • Format of the data is a scanned image .
  • -3dB (resp. -6db) point v.s. reference is at 49.8Hz (resp. 39.1Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.4dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.62 and would be 7.75 with a perfect subwoofer.
      • Details: NBD: ON 0.387, LW 0.262, SP 0.276, PIR 0.217; SM: SP0.851, PIR0.725; LFQ 1.851, LFX 45Hz
    • Tonality (Preference) Score is 5.88 with an EQ and would be 7.67 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.337, LW 0.276, SP 0.373, PIR 0.276; SM: SP0.841, PIR0.715; LFQ 1.851, LFX 37Hz
  • Link to Original review.
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
