- Quality of the measurement data is low.
- Origin of the data is Revel.
- Format of the data is a scanned image .
-
Sensitivity:
- Measured: 87.2 dB (avg. 300Hz-3kHz for 2.83V measured at 1m).
- -3dB (resp. -6db) point v.s. reference is at 92.2Hz (resp. 60.9Hz).
- Reference level is normalised to 1.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
- Frequency deviation is 1.7dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 4.59
and would be 7.27 with a
perfect subwoofer.
- Details: NBD: ON 0.365, LW 0.271, SP 0.336, PIR 0.286; SM: SP0.752, PIR0.585; LFQ 1.538, LFX 60Hz
- Tonality (Preference) Score is 6.36
with an EQ and would be 8.68 with a
perfect subwoofer and the same EQ.
- Details: NBD: ON 0.318, LW 0.215, SP 0.229, PIR 0.162; SM: SP0.97, PIR0.981; LFQ 1.538, LFX 50Hz
- Tonality (Preference) Score is 4.59
and would be 7.27 with a
perfect subwoofer.
- Link to Original review.

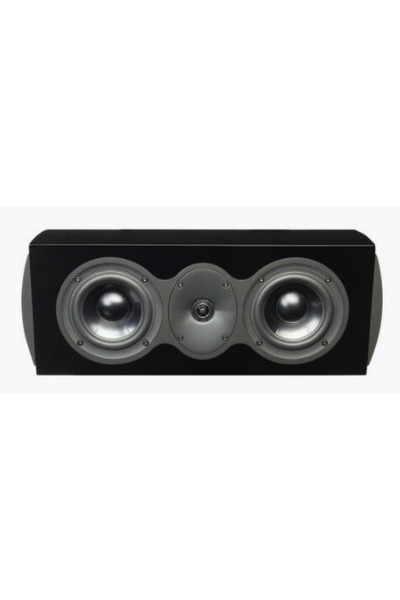

Revel C205 is a passive center that cost around 1100 USD
| AutomaticEQ (IIR) | |||
| Set preamp gain to: -2.6dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| LS | 92.0 | 1.92 | 2.66 |
| PK | 5941.0 | 0.88 | -2.71 |
| PK | 167.0 | 1.98 | -1.04 |
| PK | 1435.0 | 2.66 | 1.59 |
| PK | 584.0 | 2.92 | 1.53 |
| PK | 11769.0 | 2.97 | -0.85 |
| PK | 292.0 | 2.92 | -0.75 |
| PK | 2527.0 | 2.98 | -0.98 |
| PK | 10786.0 | 2.98 | -0.75 |
| Download | |||
This EQ optimise the Harman score and is a good start for far field listening like in your living room.
| Graphic EQ 15 bands | |||
| Set preamp gain to: -0.7dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 25.0 | 2.14 | 0.5 |
| PK | 40.0 | 2.14 | 0.5 |
| PK | 63.0 | 2.14 | 0.5 |
| PK | 100.0 | 2.14 | 0.25 |
| PK | 160.0 | 2.14 | -0.25 |
| PK | 250.0 | 2.14 | 0.0 |
| PK | 400.0 | 2.14 | 0.0 |
| PK | 630.0 | 2.14 | 0.25 |
| PK | 1000.0 | 2.14 | 0.0 |
| PK | 1600.0 | 2.14 | 0.25 |
| PK | 2500.0 | 2.14 | -0.25 |
| PK | 4000.0 | 2.14 | -0.25 |
| PK | 6300.0 | 2.14 | -0.5 |
| PK | 10000.0 | 2.14 | -0.25 |
| PK | 16000.0 | 2.14 | 0.0 |
| Download | |||
This EQ is designed for a 15 bands graphical EQ.
| Graphic EQ 31 bands | |||
| Set preamp gain to: -0.8dB. | |||
| Type | Freq | Q | Gain |
|---|---|---|---|
| PK | 20.0 | 4.32 | 0.0 |
| PK | 25.0 | 4.32 | 0.5 |
| PK | 31.0 | 4.32 | 0.5 |
| PK | 40.0 | 4.32 | 0.5 |
| PK | 50.0 | 4.32 | 0.5 |
| PK | 63.0 | 4.32 | 0.5 |
| PK | 80.0 | 4.32 | 0.5 |
| PK | 100.0 | 4.32 | 0.25 |
| PK | 125.0 | 4.32 | 0.0 |
| PK | 160.0 | 4.32 | -0.25 |
| PK | 200.0 | 4.32 | 0.0 |
| PK | 250.0 | 4.32 | 0.0 |
| PK | 315.0 | 4.32 | 0.0 |
| PK | 400.0 | 4.32 | 0.0 |
| PK | 500.0 | 4.32 | 0.0 |
| PK | 630.0 | 4.32 | 0.25 |
| PK | 800.0 | 4.32 | 0.25 |
| PK | 1000.0 | 4.32 | 0.0 |
| PK | 1250.0 | 4.32 | 0.25 |
| PK | 1600.0 | 4.32 | 0.25 |
| PK | 2000.0 | 4.32 | 0.0 |
| PK | 2500.0 | 4.32 | -0.25 |
| PK | 3150.0 | 4.32 | -0.25 |
| PK | 4000.0 | 4.32 | -0.25 |
| PK | 5000.0 | 4.32 | -0.5 |
| PK | 6300.0 | 4.32 | -0.5 |
| PK | 8000.0 | 4.32 | -0.25 |
| PK | 10000.0 | 4.32 | -0.25 |
| PK | 12000.0 | 4.32 | -0.25 |
| PK | 16000.0 | 4.32 | 0.0 |
| PK | 20000.0 | 4.32 | 0.0 |
| Download | |||
