What we know about the measurement:

RCF H1315 WP is an active liveportable

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 73.0Hz (resp. 67.0Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.3dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.28 and would be 7.2 with a perfect subwoofer.
      • Details: NBD: ON 0.532, LW 0.375, SP 0.511, PIR 0.422; SM: SP0.916, PIR0.908; LFQ 3.766, LFX 68Hz
    • Tonality (Preference) Score is 5.03 with an EQ and would be 7.83 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.398, LW 0.275, SP 0.467, PIR 0.319; SM: SP0.916, PIR0.906; LFQ 3.585, LFX 64Hz
  • Vendor specifications:
    • Dispersion: 60° horizontal and 40° vertical.
    • Impedance 8 Ohm
    • SPL
      • peak: 136 dB
    • Size
      • Width 520mm
      • Height 890mm
      • Depth 632 mm)
    • Weight 51.0 kg

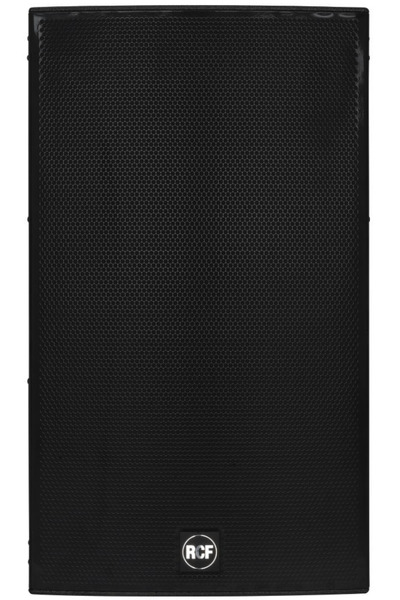

RCF H1315 WP
AutomaticEQ (IIR)
Set preamp gain to: -2.4dB.
Type Freq Q Gain
3 65.0 2.9 2.98
3 121.0 0.35 -1.63
3 470.0 2.43 1.16
3 579.0 2.93 -1.61
3 2094.0 3.0 2.21
3 4194.0 2.65 -3.53
3 4342.0 1.15 2.09
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF H1315 WP filters_auto_eq

AutomaticEQ

RCF H1315 WP filters_eq_full

Target v.s. EQ

RCF H1315 WP
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.0
3 1000.0 2.14 0.0
3 1600.0 2.14 0.25
3 2500.0 2.14 0.5
3 4000.0 2.14 0.25
3 6300.0 2.14 0.5
3 10000.0 2.14 0.5
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

RCF H1315 WP
Graphic EQ 31 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 -0.25
3 125.0 4.32 0.0
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.25
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.5
3 6300.0 4.32 0.5
3 8000.0 4.32 0.75
3 10000.0 4.32 0.5
3 12000.0 4.32 0.75
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
