What we know about the measurement:

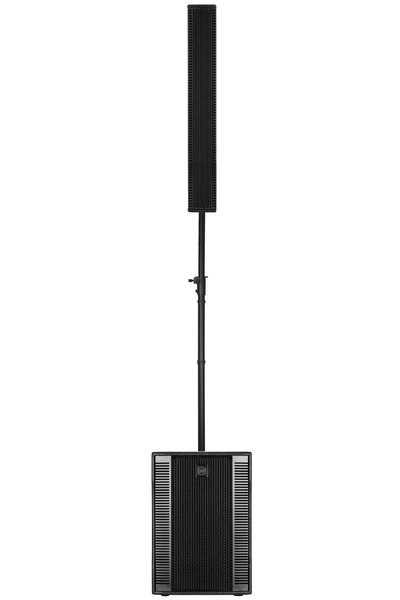

RCF EVOX 12 is an active liveportable that cost around 1900 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • Warning: this measurement was already process with an equalizer.
  • -3dB (resp. -6db) point v.s. reference is at 37.5Hz (resp. 35.5Hz).
  • Reference level is normalised to -1.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 9.5dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.89 and would be 4.62 with a perfect subwoofer.
      • Details: NBD: ON 1.067, LW 0.458, SP 0.789, PIR 0.641; SM: SP0.71, PIR0.652; LFQ 1.469, LFX 36Hz
  • Vendor specifications:
    • Dispersion: 90° horizontal and 30° vertical.
    • SPL
      • peak: 130 dB
    • Size
      • Width 410mm
      • Height 2200mm
      • Depth 560mm
    • Weight 36.4kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
