What we know about the measurement:

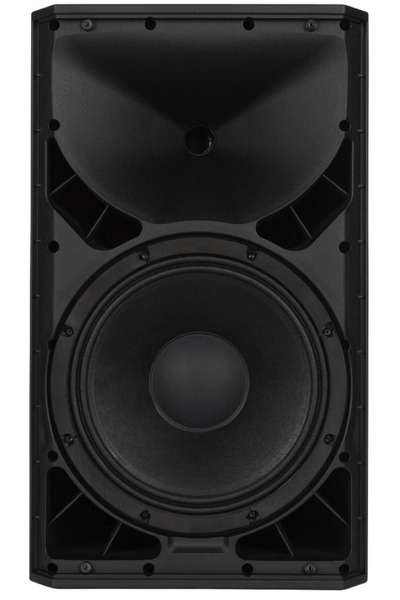

RCF ART 935-A is an active liveportable that cost around 2030 USD for a pair.

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 54.5Hz (resp. 50.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.74 and would be 6.17 with a perfect subwoofer.
      • Details: NBD: ON 0.391, LW 0.368, SP 0.497, PIR 0.43; SM: SP0.555, PIR0.323; LFQ 2.939, LFX 53Hz
    • Tonality (Preference) Score is 5.46 with an EQ and would be 7.89 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.317, LW 0.295, SP 0.369, PIR 0.29; SM: SP0.874, PIR0.804; LFQ 2.939, LFX 53Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • SPL
      • peak: 133 dB
    • Size
      • Width 415mm
      • Height 717mm
      • Depth 410 mm)
    • Weight 24.2 kg
RCF ART 935-A
AutomaticEQ (IIR)
Set preamp gain to: -2.1dB.
Type Freq Q Gain
3 99.0 1.27 -2.81
3 194.0 2.68 1.53
3 237.0 2.23 -2.43
3 418.0 2.3 0.31
3 817.0 2.22 2.55
3 1141.0 1.88 -1.25
3 2226.0 1.36 1.3
3 10713.0 0.6 -2.68
3 13997.0 1.09 -2.74
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF ART 935-A filters_auto_eq

AutomaticEQ

RCF ART 935-A filters_eq_full

Target v.s. EQ

RCF ART 935-A
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.0
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 -0.25
3 400.0 2.14 0.25
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.25
3 2500.0 2.14 0.5
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.5
3 16000.0 2.14 0.0
Download

These EQ is designed for a 15 bands graphical EQ.

RCF ART 935-A
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.0
3 80.0 4.32 -0.25
3 100.0 4.32 -0.25
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 -0.25
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.5
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.25
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.25
3 12000.0 4.32 -0.75
3 16000.0 4.32 0.0
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
