What we know about the measurement:

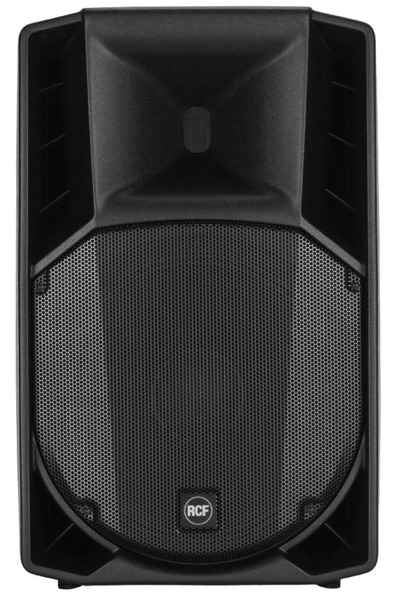

RCF ART 745-A MK4 is an active liveportable that cost around 1245 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 65.0Hz (resp. 58.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.4 and would be 6.15 with a perfect subwoofer.
      • Details: NBD: ON 0.448, LW 0.441, SP 0.531, PIR 0.491; SM: SP0.758, PIR0.455; LFQ 3.383, LFX 63Hz
    • Tonality (Preference) Score is 5.21 with an EQ and would be 7.74 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.331, LW 0.36, SP 0.482, PIR 0.418; SM: SP0.953, PIR0.92; LFQ 3.383, LFX 56Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • SPL
      • peak: 133 dB
    • Size
      • Width 437mm
      • Height 708mm
      • Depth 389 mm)
    • Weight 18.8 kg
RCF ART 745-A MK4
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 58.0 2.2 2.96
3 149.0 1.77 -1.14
3 211.0 2.98 2.17
3 243.0 2.35 -1.88
3 765.0 3.0 1.58
3 5347.0 0.96 -1.2
3 11476.0 1.23 -4.85
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF ART 745-A MK4 filters_auto_eq

AutomaticEQ

RCF ART 745-A MK4 filters_eq_full

Target v.s. EQ

RCF ART 745-A MK4
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.0
3 160.0 2.14 -0.25
3 250.0 2.14 -0.25
3 400.0 2.14 -0.25
3 630.0 2.14 -0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.0
3 2500.0 2.14 -0.25
3 4000.0 2.14 -0.25
3 6300.0 2.14 -0.5
3 10000.0 2.14 -1.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

RCF ART 745-A MK4
Graphic EQ 31 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.75
3 31.0 4.32 0.75
3 40.0 4.32 0.75
3 50.0 4.32 0.75
3 63.0 4.32 0.75
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 0.25
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.75
3 1000.0 4.32 0.25
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.0
3 6300.0 4.32 0.0
3 8000.0 4.32 -0.25
3 10000.0 4.32 -0.5
3 12000.0 4.32 -0.75
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
