What we know about the measurement:

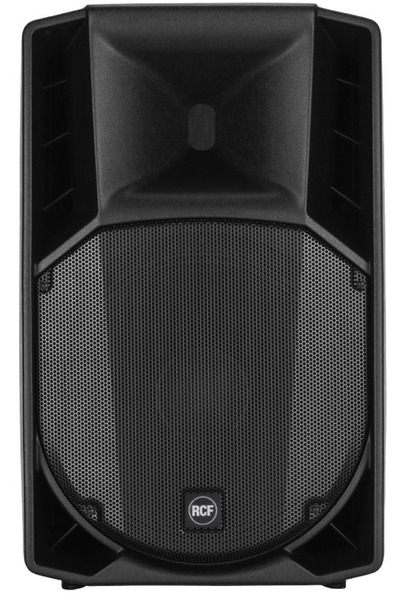

RCF ART 715-A MK4 is an active liveportable that cost around 500 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 65.0Hz (resp. 60.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 3.33 and would be 5.93 with a perfect subwoofer.
      • Details: NBD: ON 0.557, LW 0.578, SP 0.656, PIR 0.581; SM: SP0.697, PIR0.592; LFQ 2.509, LFX 58Hz
    • Tonality (Preference) Score is 4.59 with an EQ and would be 7.01 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.506, LW 0.508, SP 0.558, PIR 0.489; SM: SP0.917, PIR0.887; LFQ 2.509, LFX 53Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • SPL
      • peak: 130 dB
    • Size
      • Width 437mm
      • Height 708mm
      • Depth 389 mm)
    • Weight 19.6 kg
RCF ART 715-A MK4
AutomaticEQ (IIR)
Set preamp gain to: -2.2dB.
Type Freq Q Gain
3 54.0 2.32 2.99
3 105.0 1.3 -3.38
3 310.0 1.13 -1.8
3 1244.0 3.0 2.16
3 3177.0 2.98 -0.73
3 10341.0 1.22 -4.65
3 13652.0 2.49 -5.64
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF ART 715-A MK4 filters_auto_eq

AutomaticEQ

RCF ART 715-A MK4 filters_eq_full

Target v.s. EQ

RCF ART 715-A MK4
Graphic EQ 15 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.75
3 2500.0 2.14 0.5
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.0
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

RCF ART 715-A MK4
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 -0.5
3 100.0 4.32 -0.5
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 -0.25
3 250.0 4.32 -0.25
3 315.0 4.32 -0.25
3 400.0 4.32 -0.25
3 500.0 4.32 0.0
3 630.0 4.32 0.25
3 800.0 4.32 -0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.5
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 -0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 -0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
