What we know about the measurement:

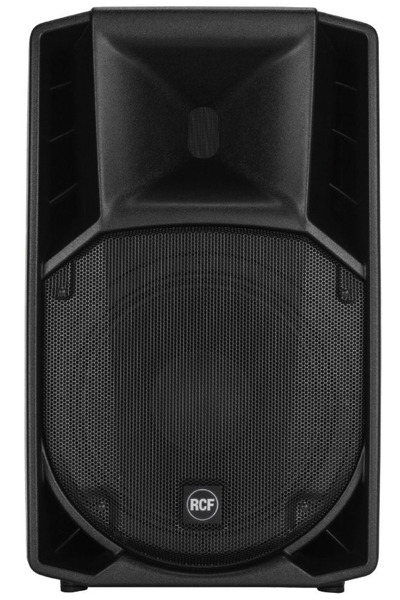

RCF ART 712-A MK5 is an active liveportable that cost around 500 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 65.0Hz (resp. 60.0Hz).
  • Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.08 and would be 7.83 with a perfect subwoofer.
      • Details: NBD: ON 0.234, LW 0.28, SP 0.361, PIR 0.312; SM: SP0.852, PIR0.718; LFQ 3.588, LFX 63Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • SPL
      • peak: 129 dB
    • Size
      • Width 387mm
      • Height 637mm
      • Depth 363mm
    • Weight 17.8kg
CEA2034
CEA2034 Normalized
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
;
