What we know about the measurement:

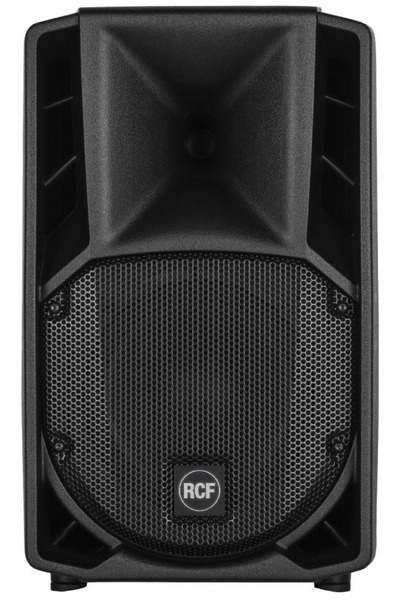

RCF ART 708-A MK4 is an active liveportable

  • Quality of the measurement data is low.
  • Origin of the data is RCF.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 75.0Hz (resp. 71.0Hz).
  • Reference level is normalised to 0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-40.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.8 and would be 7.83 with a perfect subwoofer.
      • Details: NBD: ON 0.296, LW 0.326, SP 0.41, PIR 0.366; SM: SP0.919, PIR0.852; LFQ 2.338, LFX 73Hz
    • Tonality (Preference) Score is 5.28 with an EQ and would be 8.3 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.269, LW 0.282, SP 0.353, PIR 0.302; SM: SP0.965, PIR0.948; LFQ 2.338, LFX 73Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 70° vertical.
    • SPL
      • peak: 127 dB
    • Size
      • Width 291mm
      • Height 480mm
      • Depth 276 mm)
    • Weight 10.4 kg
RCF ART 708-A MK4
AutomaticEQ (IIR)
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 67.0 2.98 2.95
3 88.0 1.35 -3.7
3 211.0 2.96 -0.85
3 1010.0 3.0 -0.88
3 2406.0 0.45 0.91
3 5732.0 0.77 -1.86
3 14134.0 1.92 -2.01
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

RCF ART 708-A MK4 filters_auto_eq

AutomaticEQ

RCF ART 708-A MK4 filters_eq_full

Target v.s. EQ

RCF ART 708-A MK4
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.0
3 1600.0 2.14 0.5
3 2500.0 2.14 0.5
3 4000.0 2.14 0.25
3 6300.0 2.14 0.0
3 10000.0 2.14 0.25
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

RCF ART 708-A MK4
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.0
3 100.0 4.32 -0.5
3 125.0 4.32 -0.25
3 160.0 4.32 0.0
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.25
3 800.0 4.32 0.25
3 1000.0 4.32 0.0
3 1250.0 4.32 0.5
3 1600.0 4.32 0.5
3 2000.0 4.32 0.5
3 2500.0 4.32 0.5
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.0
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.75
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

RCF ART 708-A MK4: comparison between EQs
RCF ART 708-A MK4

Comparison betweens various EQs
