What we know about the measurement:

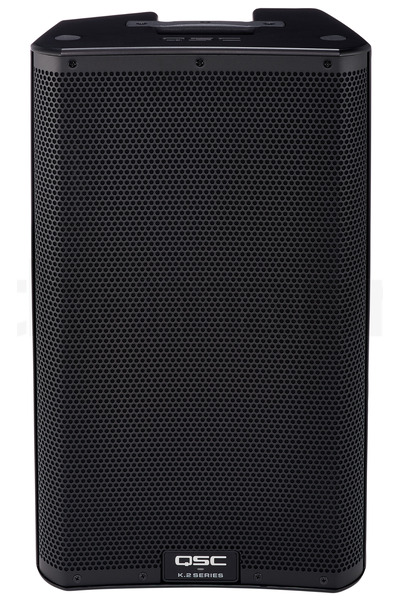

QSC K10.2 is an active liveportable that cost around 775 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is QSC.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 56.0Hz (resp. 50.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 0.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.26 and would be 8.63 with a perfect subwoofer.
      • Details: NBD: ON 0.197, LW 0.174, SP 0.294, PIR 0.22; SM: SP0.942, PIR0.907; LFQ 1.764, LFX 51Hz
    • Tonality (Preference) Score is 7.0 with an EQ and would be 9.27 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.11, LW 0.103, SP 0.203, PIR 0.131; SM: SP0.961, PIR0.972; LFQ 1.764, LFX 48Hz
  • Note: Data provided by QSC is of good quality but highly smoothed.
QSC K10.2
AutomaticEQ (IIR)
Set preamp gain to: -1.8dB.
Type Freq Q Gain
3 52.0 2.52 2.93
3 102.0 1.16 -4.16
3 439.0 1.12 -1.03
3 487.0 2.88 1.8
3 4342.0 0.93 -1.99
3 10341.0 0.26 2.95
3 10707.0 1.23 -3.01
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

QSC K10.2 filters_auto_eq

AutomaticEQ

QSC K10.2 filters_eq_full

Target v.s. EQ

QSC K10.2
Graphic EQ 15 bands
Set preamp gain to: -1.0dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.0
3 100.0 2.14 -0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.0
3 400.0 2.14 0.0
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.5
3 4000.0 2.14 0.25
3 6300.0 2.14 0.5
3 10000.0 2.14 0.5
3 16000.0 2.14 1.0
Download

These EQ is designed for a 15 bands graphical EQ.

QSC K10.2
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.0
3 80.0 4.32 -0.25
3 100.0 4.32 -0.5
3 125.0 4.32 -0.5
3 160.0 4.32 -0.25
3 200.0 4.32 0.0
3 250.0 4.32 0.0
3 315.0 4.32 0.0
3 400.0 4.32 0.0
3 500.0 4.32 0.25
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.0
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.0
3 4000.0 4.32 0.0
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 0.5
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

QSC K10.2: comparison between EQs
QSC K10.2

Comparison betweens various EQs

QSC K10.2

Improvements made by EQ
